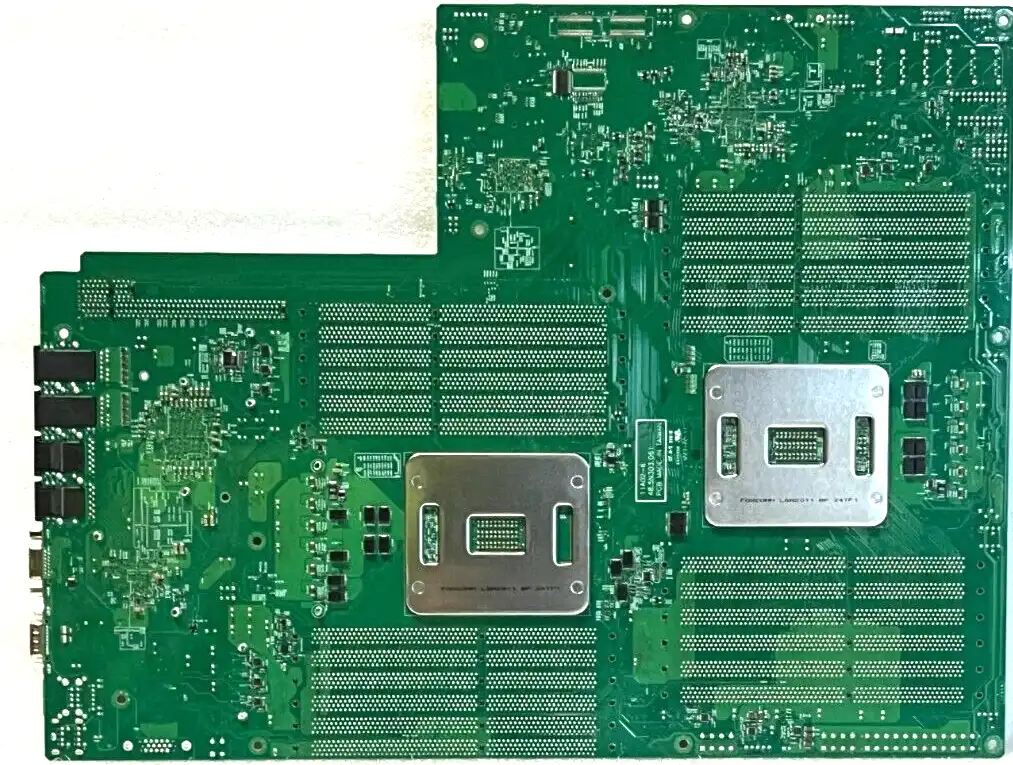

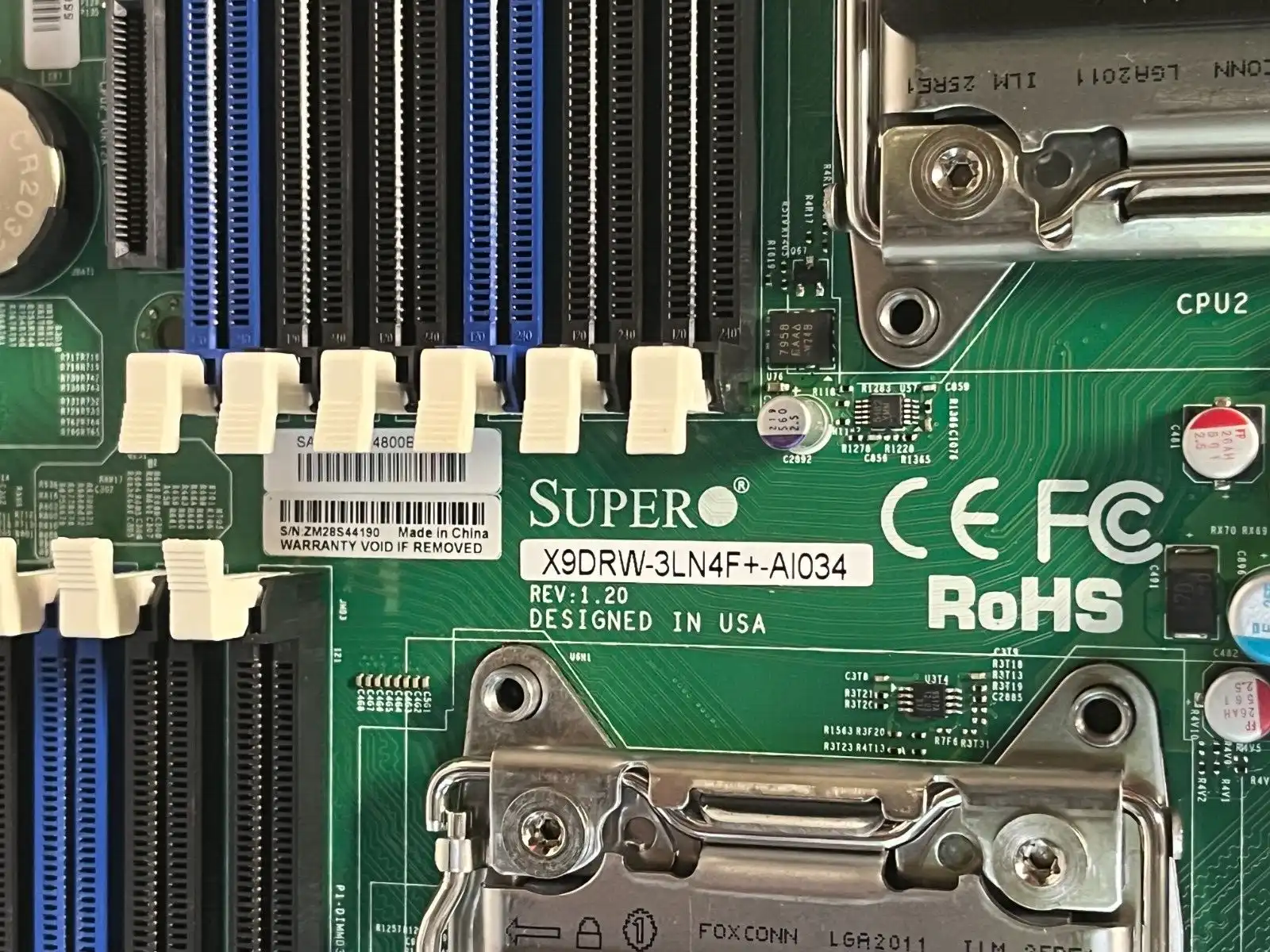

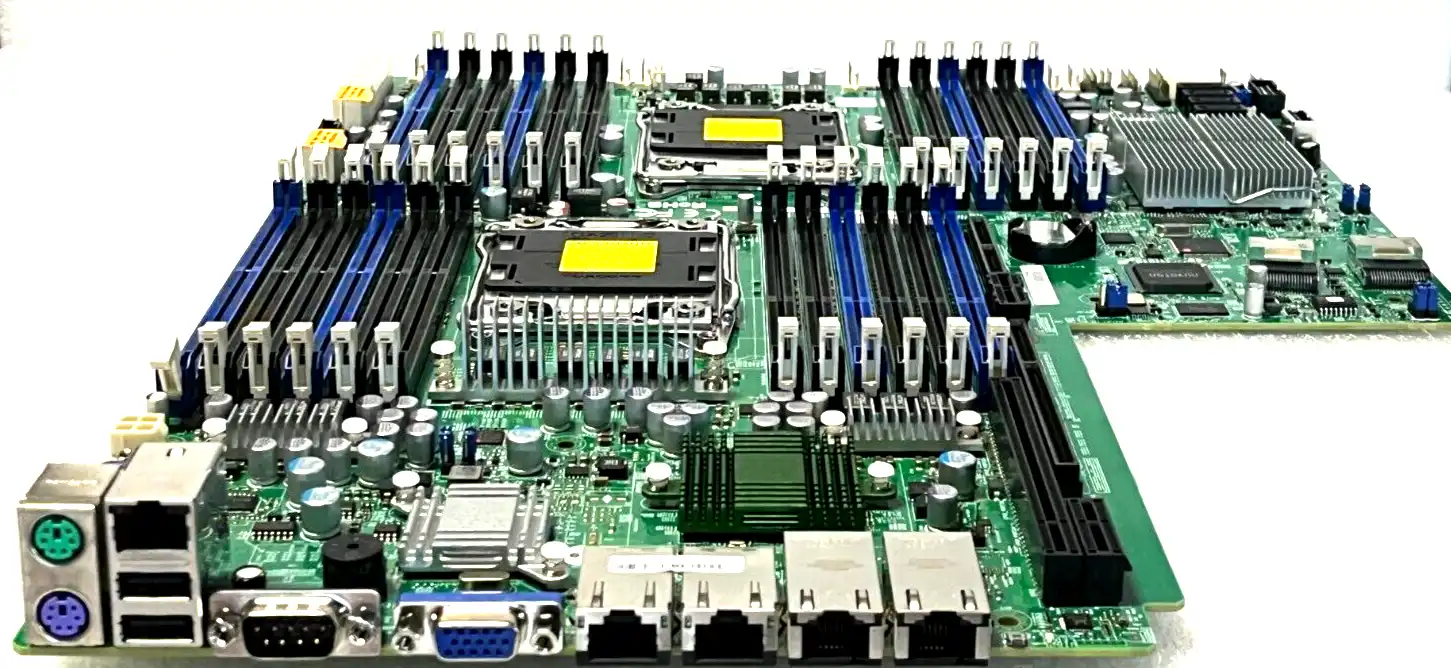

Supermicro X9DRW-3LN4F+-AI034 dual socket 2011 Acer Altos AR360-F2 SB.R8511.001

$379.00

In Stock

SKU: 166599914019

Specifications

Supermicro X9DRW-3LN4F+-AI034 server motherboarddual socket 2011 suits Acer Altos AR360-F2 AR380-F2 server

Acer part number: SB.R8511.001

M/b is brand new. OEM packaging. Not used. No accessories (cables, CD's, backplate) are included. Just the board itself.

Genuine Acer spare part.

Key Features

1. Dual socket R (LGA 2011) supports
Intel® Xeon® processor E5-2600
and E5-2600 v2 family^†

2. Intel® C606 chipset; QPI up to 8.0GT/s

3. Up to 1.5TB ECC DDR3, up to 1866MHz;
24x DIMM slots
* Depends on memory configuration

4. Riser card support:
Left side - 1 (x48) PCI-E 3.0

5. 4x Gigabit Ethernet LAN ports;
Intel® i350 GbE controller

6. 4x SATA2 and 2x SATA3 ports

7. 8x SAS ports from C606

8. Integrated IPMI 2.0 and KVM with
Dedicated LAN

9. 7x USB 2.0 ports
(2 rear, 4 via header + 1 Type A)
Specifications


Processor/Cache
width="337" height="1">
CPU	Dual Socket R (LGA 2011) Intel® Xeon® processor E5-2600 and E5-2600 v2 family^† (up to 135W TDP **)
Note	† BIOS version 3.0 or above is required
Note	** Motherboard supports this maximum TDP. Please verify your system can thermally support.
Cache	Up to 30MB
System Bus	QPI up to 8 GT/s


System Memory
width="337" height="1">
Memory Capacity	24x 240-pin DDR3 DIMM slots Up to 1.5TB DDR3 ECC LRDIMM Up to 768GB DDR3 ECC RDIMM Up to 128GB DDR3 ECC/non-ECC UDIMM
Memory Type	1866/1600/1333/1066/800MHz* ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs Support ECC and non-ECC UDIMMs * Maximum memory speed may be capped by CPU. Please verify that the chosen CPU can support desired memory speed.
DIMM Sizes	32GB, 16GB, 8GB, 4GB, 2GB, 1GB, 64GB LRDIMM
Memory Voltage	1.5 V, 1.35 V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)


On-Board Devices
width="337" height="1">
Chipset	Intel® C606 chipset
SATA	SATA 2.0 3Gb/s with RAID 0, 1, 5, 10 SATA 3.0 6Gb/s with RAID 0, 1, 5, 10
SAS	SAS from C606 RAID 0, 1, 10 support

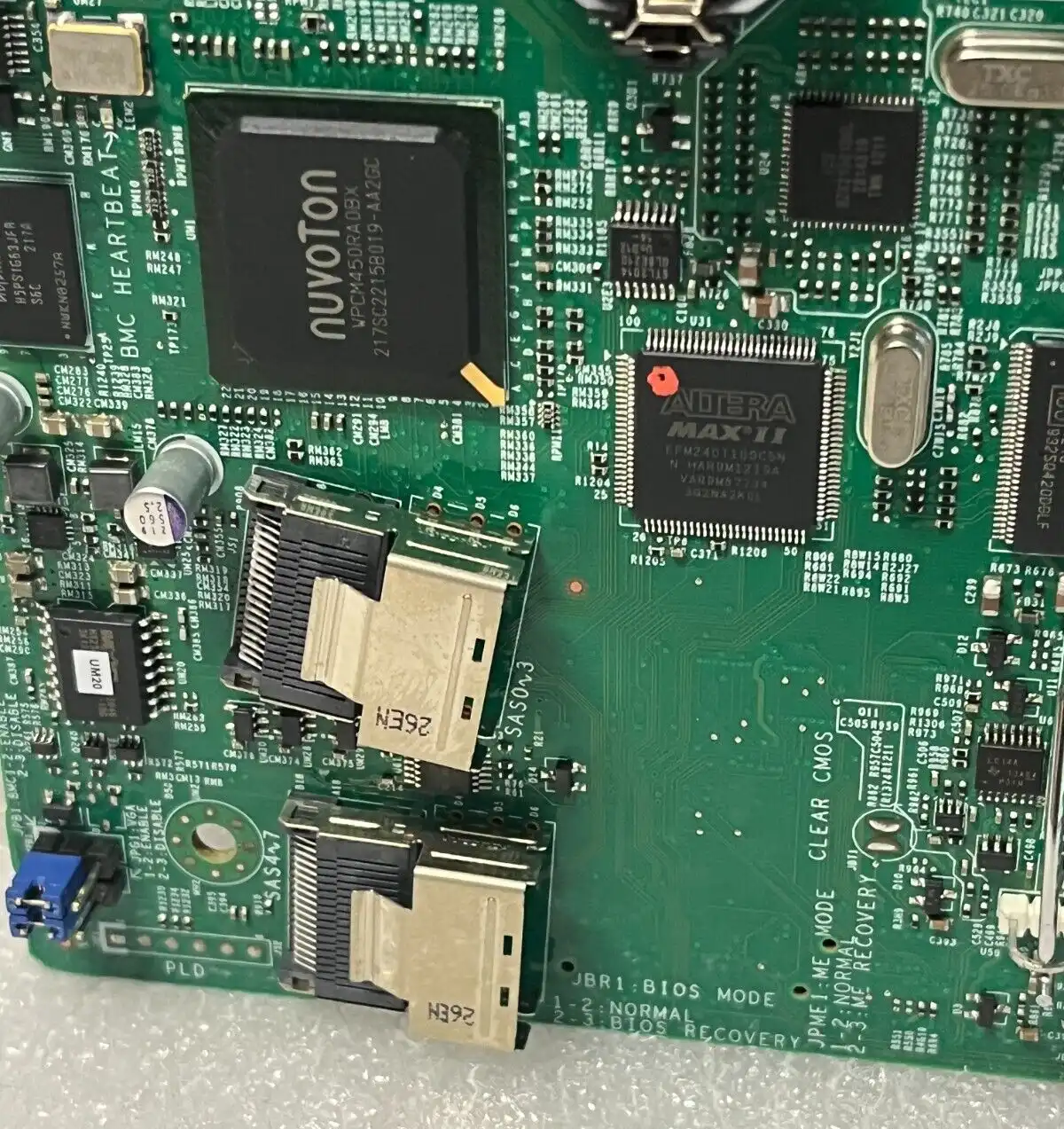

IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Nuvoton WPCM450 BMC
Network Controllers	Intel® i350 Gigabit Ethernet (x4 ports) Virtual Machine Device Queues reduce I/O overhead Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output 1x Realtek RTL8201N PHY (dedicated IPMI) (Both CPUs need to be installed for LAN ports 3 and 4 to be enabled)
Video	Matrox G200eW


Input / Output
width="337" height="1">

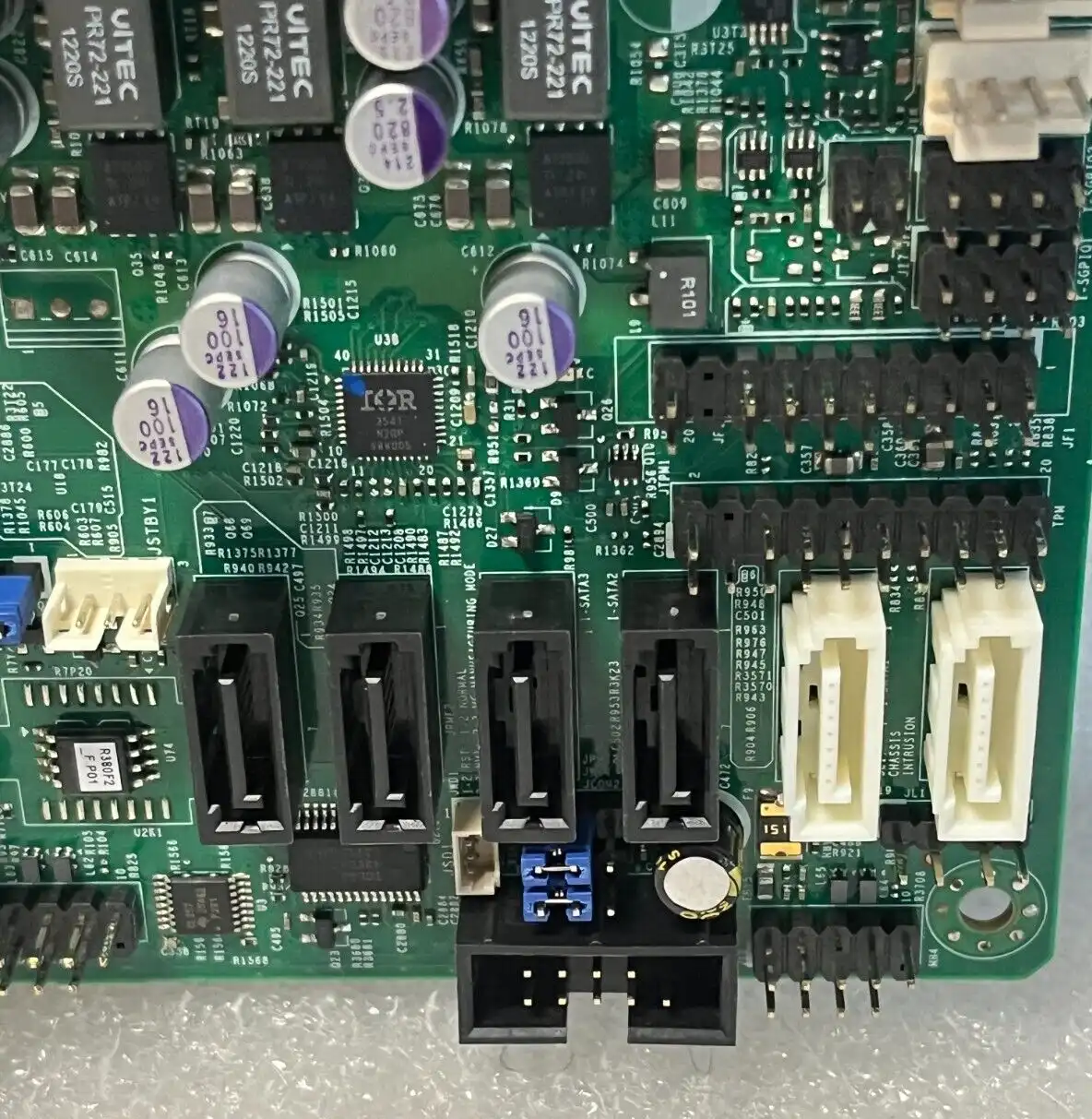

SATA	2 SATA 3.0 ports (6Gb/s) 4 SATA 2.0 ports (3Gb/s)
SAS	8 SAS ports
LAN	4 RJ45 Gigabit Ethernet LAN ports 1 RJ45 Dedicated IPMI LAN port
USB	7 USB 2.0 ports total (2 rear + 4 via header + 1 Type A)
Video	1 VGA port
Serial Port / Header	2 Fast UART 16550 ports: 1 rear and 1 header
DOM	1 DOM (Disk on Module) power connector
TPM	1 TPM Header


Chassis (Optimized for X9DRW-3LN4F+)
width="337" height="1">
1U Chassis	CSE-119TQ-R700WB CSE-819TQ-R700WB
2U Chassis	CSE-219A-R920WB CSE-829BTQ-R920WB CSE-829TQ-R920WB
Important Chassis Notes	To support the new generation Intel® Xeon® processor-based motherboards, Revision M chassis is recommended. Please talk to your sales representative for details.


SuperServer(s) with X9DRW-3LN4F+
width="337" height="1">
Model(s)	SYS-2027R-N3RF4+ SYS-1027R-WRF4+ SYS-6017R-N3RF4+ SYS-6027R-N3RF4+


Expansion Slots
width="337" height="1">
PCI-Express	1 PCI-E 3.0 (x48) left hand side riser card support (Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram for details.)


System BIOS
width="337" height="1">
BIOS Type	128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features	Plug and Play (PnP) APM 1.2 PCI 2.3 ACPI 1.0 / 2.0 / 3.0 / 4.0 USB Keyboard support SMBIOS 2.7.1 UEFI 2.3.1


Management
width="337" height="1">
Software	SuperDoctor® III Watch Dog NMI IPMI 1.5 / 2.0
Power Configurations	ACPI / APM Power Management Power-on mode for AC power recovery


PC Health Monitoring
width="337" height="1">
Voltage	Monitors for CPU Cores, +1.1V, +1.5V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory Voltages. 5+1 Phase-switching voltage regulator
FAN	6x 4-pin fan headers (up to 6 fans) 6x fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment CPU thermal trip support Thermal Control for 8x Fan Connectors Thermal Monitor 2 (TM2) support PECI
LED	CPU / System Overheat LED Suspend static indicator LED UID/Remote UID
Other Features	Chassis intrusion detection Chassis intrusion header SDDC Support RoHS



Operating Environment
width="337" height="1">
Operating Temperature Range	10°C - 35°C (50°F - 95°F)
Non-Operating Temperature Range	-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range	8% - 90% (non-condensing)
Non-Operating Relative Humidity Range	5% - 95% (non-condensing)
