SuperMicro server motherboard dual socket 1366 X8DTU-LN4F+-AI034 MB.R510F.001
SuperMicro server motherboard dual socket 1366 X8DTU-LN4F+-AI034 MB.R510F.001SuperMicro server motherboard dual socket 1366 X8DTU-LN4F+-AI034 MB.R510F.001SuperMicro server motherboard dual socket 1366 X8DTU-LN4F+-AI034 MB.R510F.001SuperMicro server motherboard dual socket 1366 X8DTU-LN4F+-AI034 MB.R510F.001SuperMicro server motherboard dual socket 1366 X8DTU-LN4F+-AI034 MB.R510F.001SuperMicro server motherboard dual socket 1366 X8DTU-LN4F+-AI034 MB.R510F.001SuperMicro server motherboard dual socket 1366 X8DTU-LN4F+-AI034 MB.R510F.001

SuperMicro server motherboard dual socket 1366 X8DTU-LN4F+-AI034 MB.R510F.001

$104.00
In Stock
SKU: 165599458143
Buy Now - Visit Store

Specifications

Specifications

Compatible CPU Brand Intel
Socket Type LGA 1366/Socket B
Model X8DTU-LN4F
Brand Supermicro

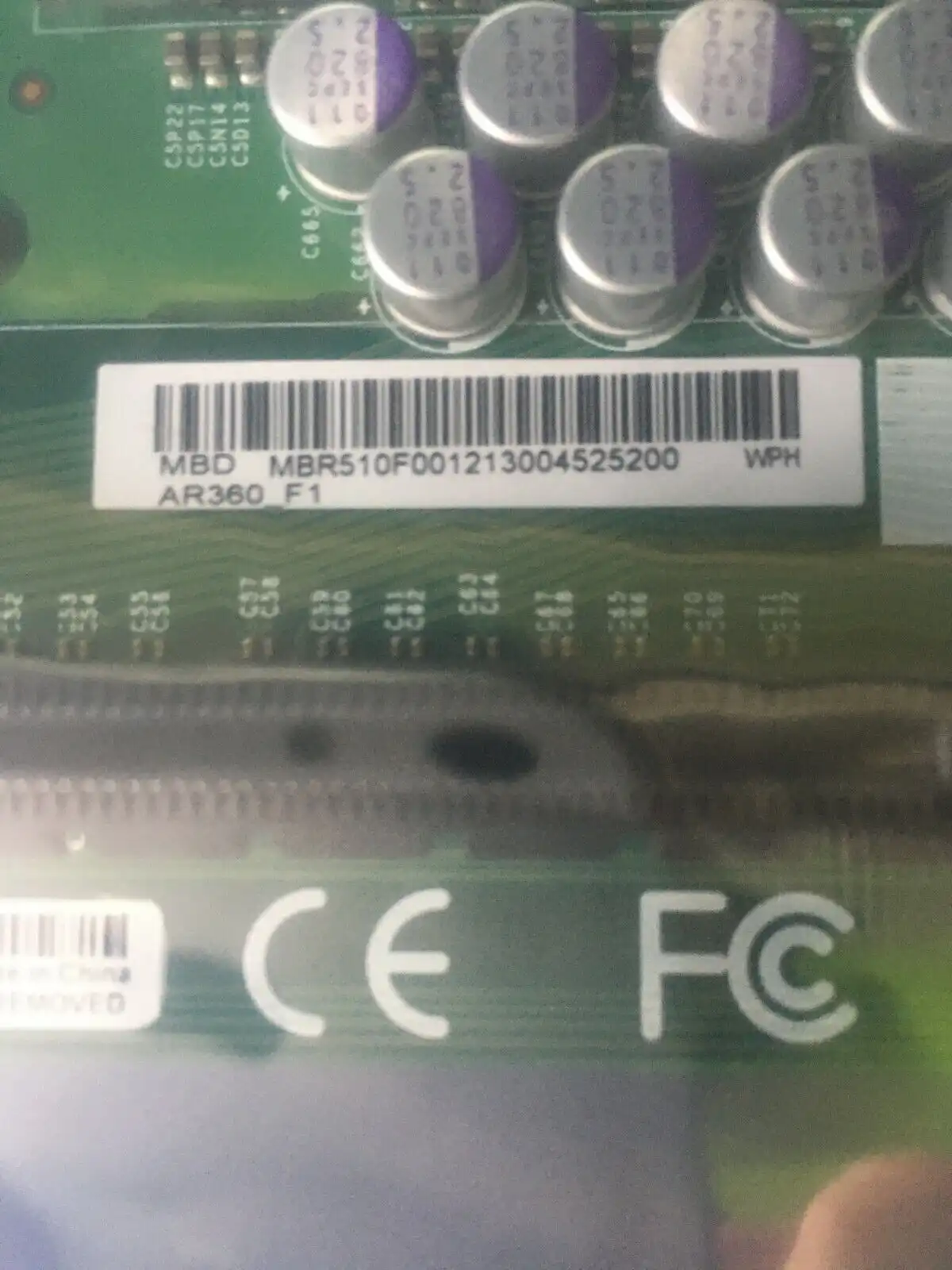

MPN MB.R510F.001

Product Description

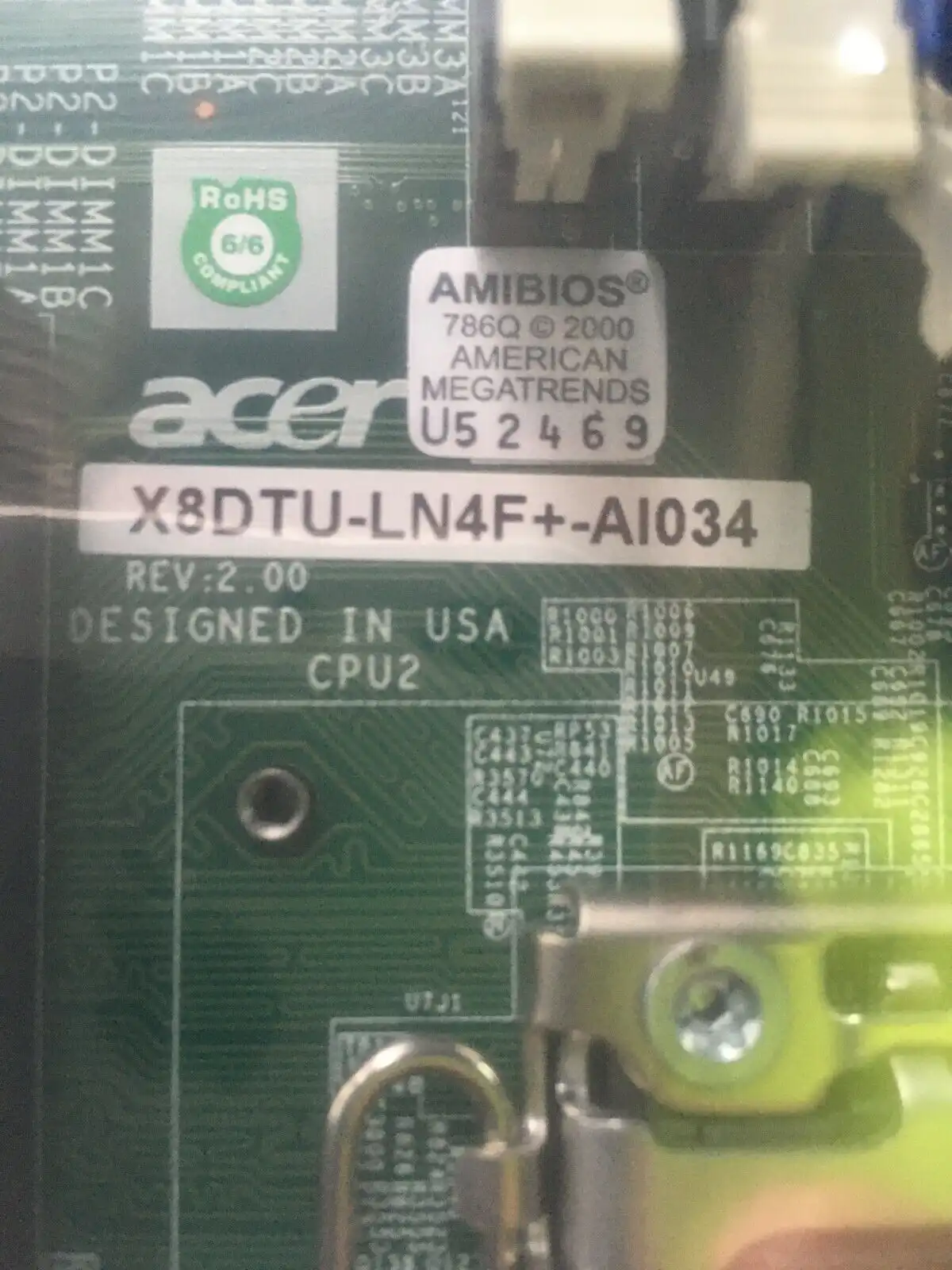

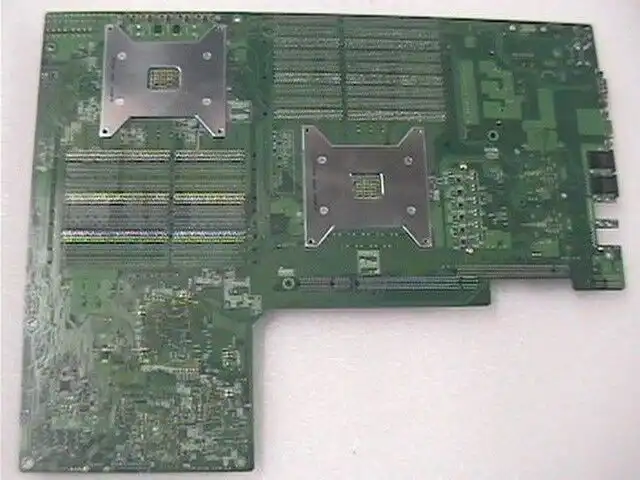

Acer (SuperMicro) server dual socket 1366 mainboard MB.R510F.001 X8DTU-LN4F+-AI034

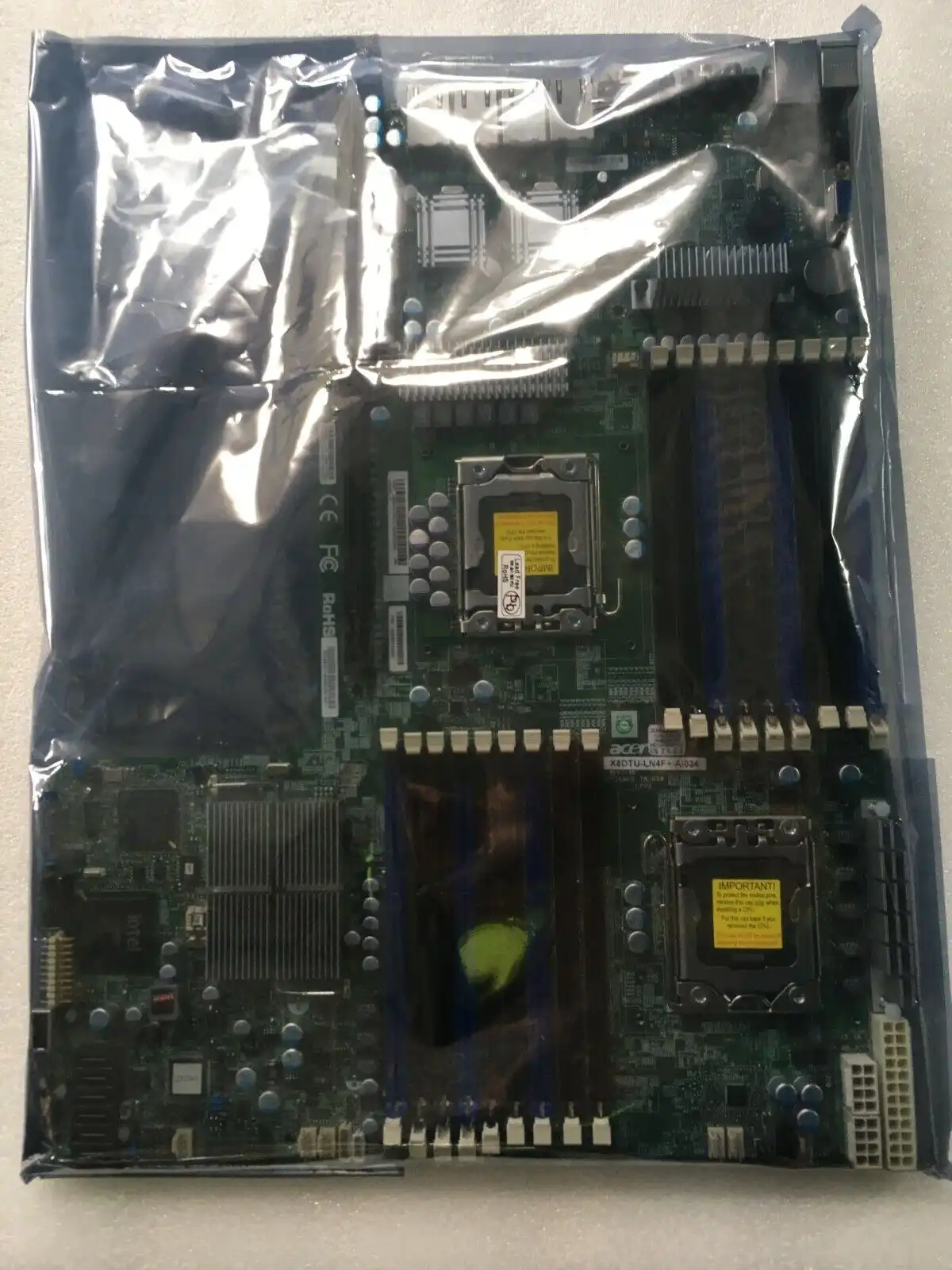

M/b is brand new. OEM packaging. Sealed. Never used or opened. No accessories (cables, CD's, backplate) are included. Just the board itself.

Genuine Acer/Gateway part.

30 days warranty back-to-base.

Key Features

1. Intel® Xeon® processor 5600/5500
series, with QPI up to 6.4 GT/s

2. Intel® 5520 (Tylersburg) Chipset

3. Up to 288GB DDR3 1333/ 1066/
800MHz ECC Registered DIMM /
48GB Unbuffered DIMM

4. 2 x Intel® 82576 Dual-Port Gigabit
Ethernet Controllers (4 ports)

5. 6x SATA2 (3 Gbps) Ports via
ICH10R Controller

6. Left Side 1 (x16) PCI-E 2.0 + 1 PCI-E 2.0 x4 by riser card
Right Side 1 (x8) PCI-E 2.0 + 1 PCI-E 2.0 x4
by riser card (in x16 slot)

7. Integrated Matrox G200eW Graphics

8. Integrated IPMI 2.0 with Dedicated LAN

MBD-X8DTU-LN4F+ -B
  • X8DTU-LN4F+ (Bulk Pack)
Physical Stats
Form Factor
  • Proprietary
Dimensions
  • 12.8" x 16.5" (32.5cm x 41.9cm)
Processor/Cache
CPU
  • Dual 1366-pin LGA Sockets
  • Supports up to two Intel® 64-bit Xeon® processor(s) of the same type below:
    • Intel Xeon®Processor 5600 Series (Westmere)
    • Intel Xeon®Processor 5500 Series (Nehalem-EP)
QPI
  • up to 6.4 GT/s
System Memory
Memory Capacity
  • 18x 240-pin DIMM slots
  • Supports up to 288GB 1333 / 1066 / 800MHz DDR3 ECC Registered memory
  • Supports up to 48GB 1333 / 1066 / 800MHz DDR3 ECC / Non ECC Unbuffered memory
  • Memory Mirroring supported
Memory Type
  • 1333 / 1066 / 800MHz ECC Registered / ECC or Non ECC Unbuffered DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes
  • 1GB, 2GB, 4GB , 8GB , 16GB
Memory Voltage
  • 1.5 V / 1.35V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
  • Supports Intel® x4 and x8 Single Device Data Correction (SDDC)
Note: This board does not support LRDIMM memory.
On-Board Devices
Chipset
  • Intel® 5520 (Tylersburg) chipset
  • ICH10R + IOH-36D
SATA
  • Intel ICH10R SATA 3.0Gbps Controller
  • RAID 0, 1, 5, 10 support (Windows)
  • RAID 0, 1, 10 support (Linux)
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • Winbond® WPCM450 BMC
Network Controllers
  • 2x Intel® 82576 Dual-Port Gigabit Ethernet Controllers (4 ports)
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • Intel® I/OAT 3
    support for fast, scaleable, and reliable networking
  • VMDq
    support for better performance of virtualization
  • 1x Realtek RTL8201N PHY (dedicated IPMI)
Graphics
  • Matrox G200eW
Super I/O
  • Winbond 83827HF chip
Input / Output
Serial ATA

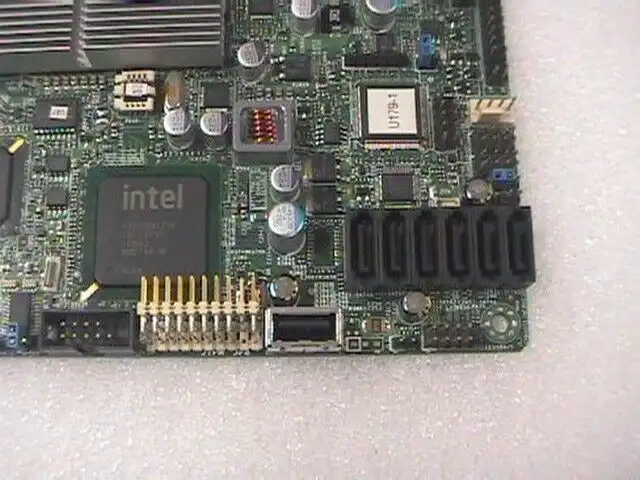

  • Six Serial ATA ports
  • Six SATA hard drives supported
LAN
  • 4x RJ45 LAN ports
  • 1x RJ45 Dedicated IPMI LAN port
USB
  • 2x USB rear ports
  • 1x USB on-board
  • 5x USB internal headers
  • Total 8 USB 2.0 Compliant
VGA
  • 1x VGA Port
Keyboard / Mouse
  • PS/2 keyboard and mouse ports
Serial Port / Header
  • 1 Fast UART 16550 serial port
  • 1 Fast UART 16550 serial header
Chassis ( Optimized for X8DTU-LN4F+ )
Important Chassis Notes
  • To support the new generation Intel® Xeon® processor-based motherboards, a
    Revision K chassis is recommended for most models. Please talk to your sales representative or follow the link for details.
Expansion Slots
PCI-Express / PCI-X / UIO Left Side
    • 1 (x16) PCI-E 2.0 + 1 PCI-E 2.0 x4 by riser card

Right Side

    • 1 (x8) PCI-E 2.0 + 1 PCI-E 2.0 x4 by riser card
System BIOS
BIOS Type
  • 32Mb SPI Flash EEPROM with AMI® BIOS
BIOS Features
  • Plug and Play (PnP)
  • PCI 2.2
  • ACPI up to 3.0
  • USB Keyboard support
Management
Software
  • IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
  • SuperDoctor® III
Power Configurations
  • ACPI / ACPM Power Management
PC Health Monitoring
Voltage
  • Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.

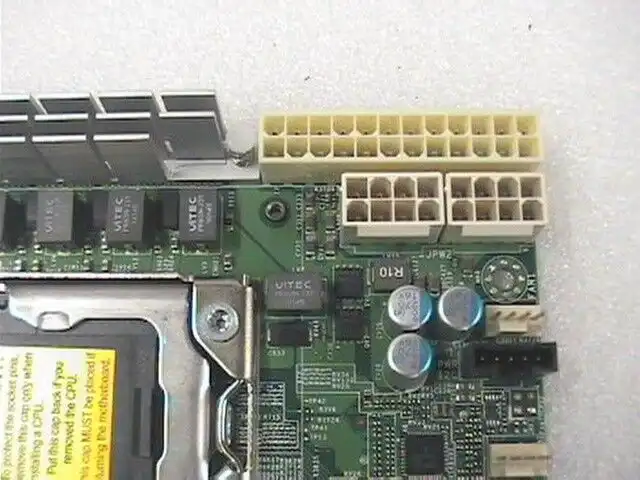

  • 6-Phase-switching voltage regulator
FAN
  • Total of eight fan headers supporting up to 8 fans
  • Eight 4-pin fan headers
  • 8x fans with tachometer status monitoring
  • Support 3-pin fans (w/o speed control)
  • Low noise fan speed control (4-pin fan only)
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for 8x fan connectors
  • PECI
Other Features
  • Chassis intrusion detection
  • Chassis intrusion header
Operating Environment
Environmental Spec.
  • Operating Temperature: 10° to 35° C (50° to 95°F)
  • Non-operating Temperature: -40° to 70° C (-40° to 158° F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5 to 95% (non-condensing)
OS Compatibility
