Supermicro PWS-920P-1R 1u 920W PSU brand new
Specifications
Specifications
| Maximum Power | 920 W |
Product Description
| Brand | Supermicro |
|---|---|
| Total Power Output | 920W |
| Type | Module |
| Type of Power Supply | Power Supply |
| Form Factor | 1U |
| Dimension (W x H x L) | 76 x 40 x 336mm |
| +5V | N/A |
| +12V | 75A |
| +3.3V | N/A |
| 5V Standby | 4A |
| Input Voltage Range | 100-240V |
| Input Frequency Range | 50-60Hz |
| Input Current Range | 11-4.4A |

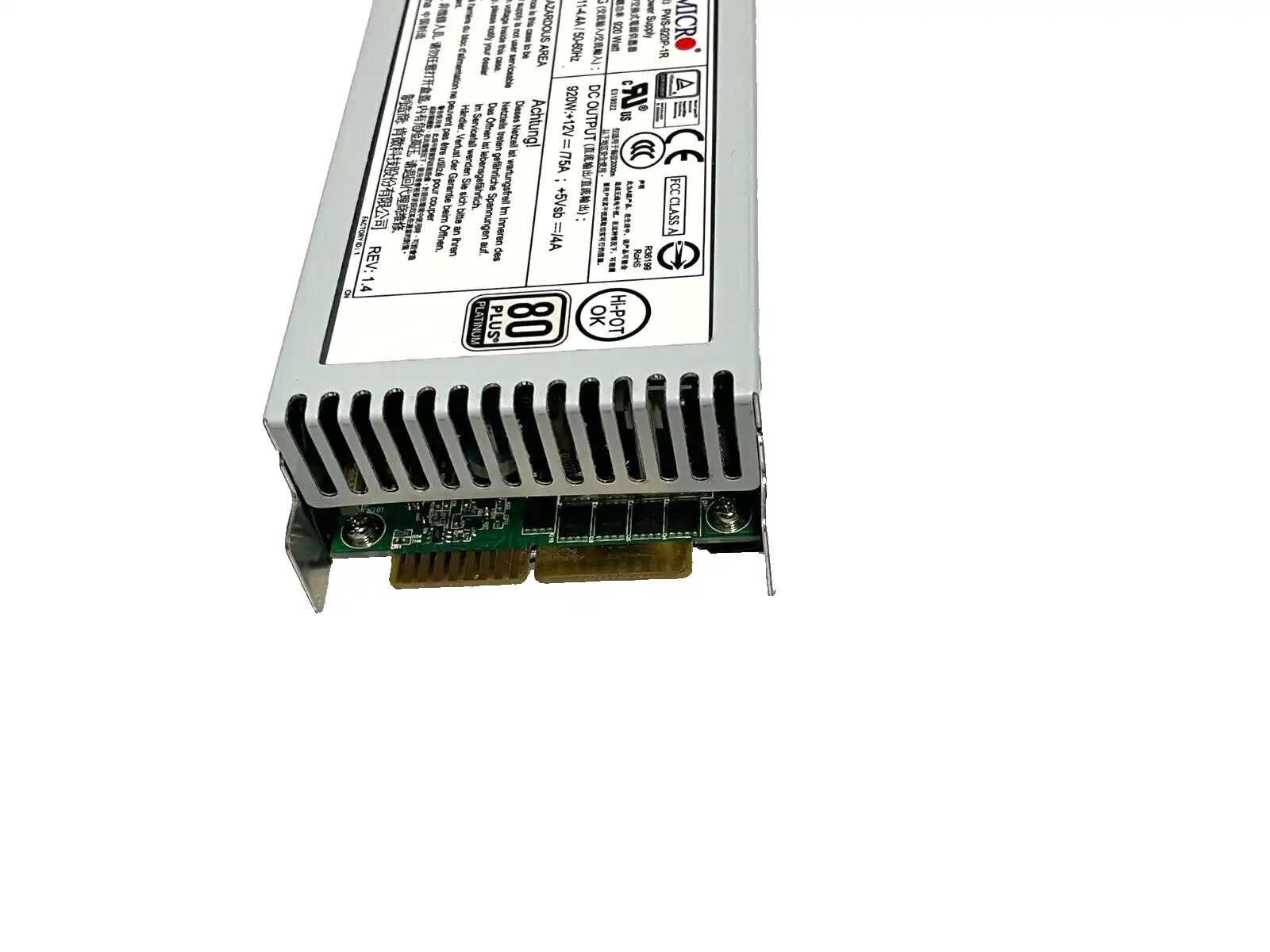

| Output Type | Gold Finger (19 Pair Connector) |
| 8Pin / 4Pin (12V) Connector | N/A |
| PFC | Yes |
| Voltage / Current | Yes |
| Energy Efficiency | 91% Peak |
| 80 Plus Certification | 80 Plus Platinum |
| Validated Systems | SYS-2028R-C1R, SYS-2028R-C1R4+, SYS-2028R-C1RT, SYS-2028R-C1RT4+, SYS-6037R-72RF, SYS-6037R-72RFT, SYS-7047R-3RF4+, SYS-7047R-72RF, SYS-7047R-72RFT, SYS-7047R-TRF, SYS-7048R-C1R, SYS-7048R-C1R4+, SYS-7048R-C1RT, SYS-7048R-TR, SYS-7048R-TRT |
| Validated Chassis | CSE-219A-R920UB, CSE-829TQ-R920UB |
