Supermicro MBD-X10DAI-O dual socket 2011 Acer Veriton P530 F3 m/b SB.RAC11.001
Supermicro MBD-X10DAI-O dual socket 2011 Acer Veriton P530 F3 m/b SB.RAC11.001Supermicro MBD-X10DAI-O dual socket 2011 Acer Veriton P530 F3 m/b SB.RAC11.001Supermicro MBD-X10DAI-O dual socket 2011 Acer Veriton P530 F3 m/b SB.RAC11.001Supermicro MBD-X10DAI-O dual socket 2011 Acer Veriton P530 F3 m/b SB.RAC11.001Supermicro MBD-X10DAI-O dual socket 2011 Acer Veriton P530 F3 m/b SB.RAC11.001Supermicro MBD-X10DAI-O dual socket 2011 Acer Veriton P530 F3 m/b SB.RAC11.001Supermicro MBD-X10DAI-O dual socket 2011 Acer Veriton P530 F3 m/b SB.RAC11.001Supermicro MBD-X10DAI-O dual socket 2011 Acer Veriton P530 F3 m/b SB.RAC11.001

Supermicro MBD-X10DAI-O dual socket 2011 Acer Veriton P530 F3 m/b SB.RAC11.001

$388.00
Out of Stock
SKU: 405226777938
Buy Now - Visit Store

Specifications

Specifications

Socket Type LGA 2011
Compatible CPU Brand Intel
Number of Memory Slots 16
Input/Output Ports D-Sub

Product Description

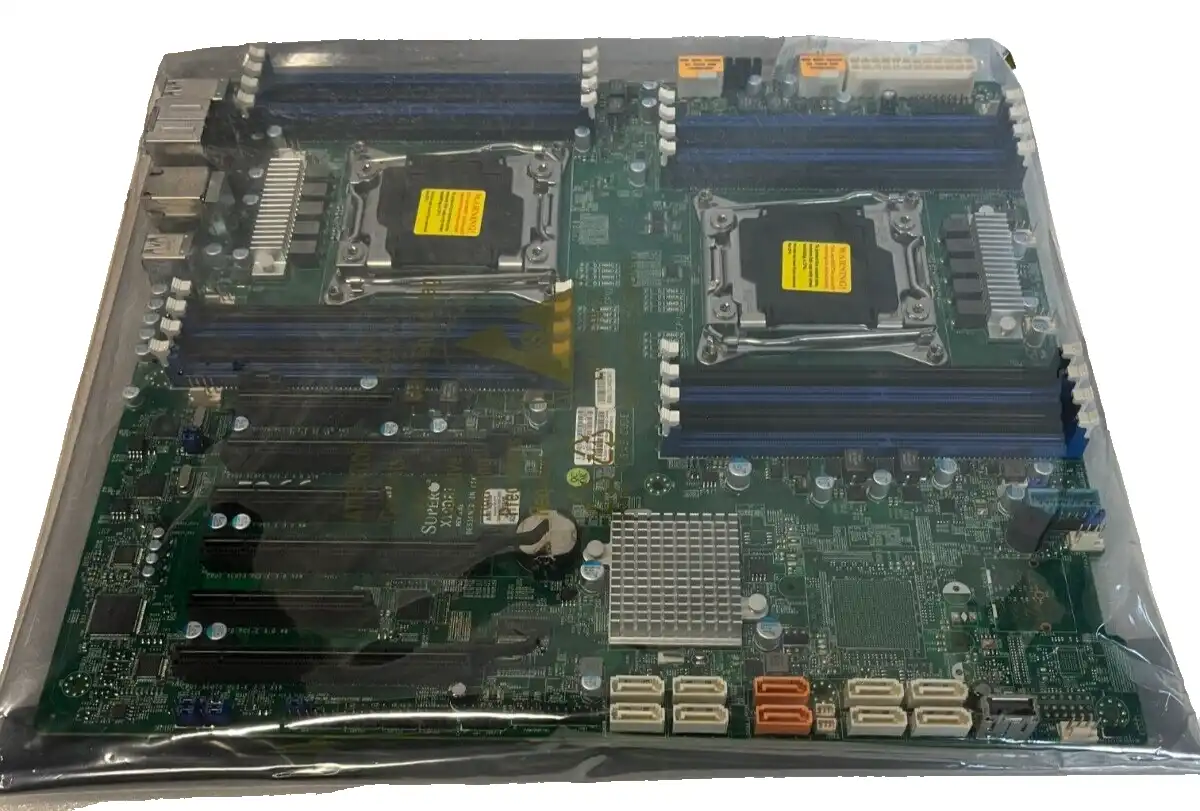

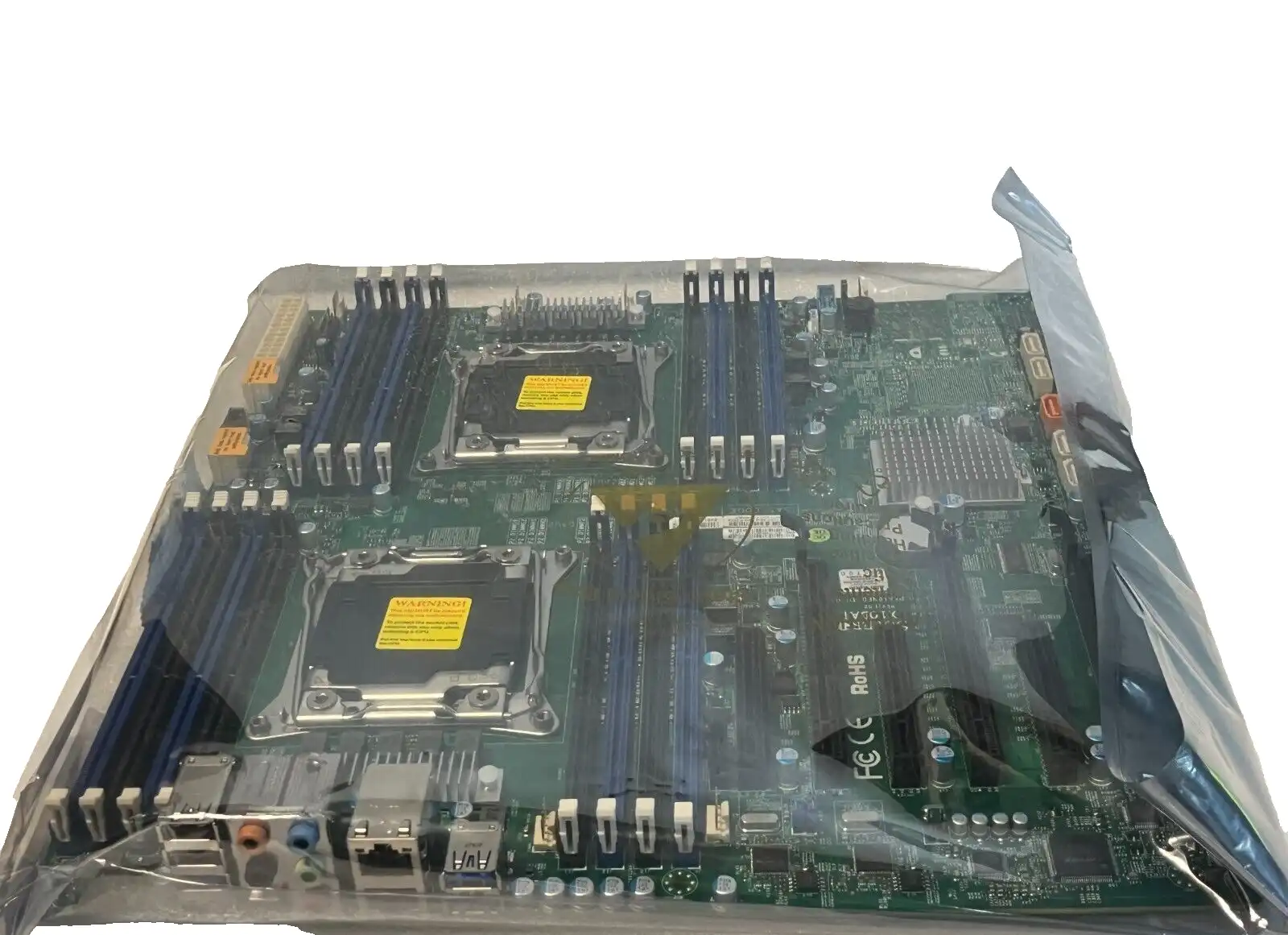

The X10DAI-O Server Motherboard from SuperMicro has an E-ATX form factor and supports the Intel Xeon E5-2600 v3 family of processors with up to 18 cores with its Intel C612 chipset and LGA 2011 socket. It offers PCIe expansion slots and Intel i210 dual port GbE LAN. The motherboard also features 7.1-channel HD audio with optical S/PDIF out, chassis intrusion detection, plug-n-play, and SDDC. The motherboard also supports a Thunderbolt add-on card.


Supermicro MBD-X10DAI-O Specs

Performance
CPU
Intel Xeon processor E5-2600 v3 family (up to 160 W TDP**)
Dual socket R3 (LGA 2011)
Number of Cores
Up to 18
Chipset
Intel C612 Express
Cache
Up to 45 MB
Form Factor
E-ATX
System Bus
QPI up to 9.6 GT/s
System Memory
Memory
16 x 288-pins DDR4 DIMM sockets
Capacity
Up to 1 TB ECC LRDIMM
512 GB ECC RDIMM
Type
2133/1866/1600 MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
RDIMM: 32/16/8/4 GB
LRDIMM: 64/32 GB
Voltage
1.2 V
Error Detection
Corrects single-bit errors
On-Board Devices
SATA
SATA 3 (6 Gb/s)
RAID 0, 1, 5, 10
Network Controllers
Intel i210 Dual Port Gigabit Ethernet
Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ-45 output
Audio
RealTek ALC888 7.1 high definition audio with S/PDIF header
Input/Output
SATA
10 x SATA 3 (6 Gb/s) ports
LAN
2 x RJ-45 Gigabit Ethernet LAN ports
USB
6 x USB 3.0 ports (4 x rear + 2 x via header)
5 x USB 2.0 ports (2 x rear + 2 x via header + 1 x Type A)
Audio
HD audio with optical S/PDIF
DOM
2 x SuperDOM (Disk on Module) ports
TPM
1 x 1.2 TPM 20-pins header
Expansion Slots
PCIe
3 x PCIe 3.0 x16
2 x PCIe 3.0 x8
1 x PCIe 2.0 x4 (in x8)
System BIOS
Type
128 Mb SPI flash EEPROM with AMI BIOS
Features
Plug-n-Play (PnP)
APM 1.2
PCI 2.3
ACPI 1.0 / 2.0 / 3.0 / 4.0
Support USB keyboard
SMBIOS 2.7.1
UEFI 2.3.1
Chassis
Chassis
2U
3U / Mid-Tower
SC732i-865B
SC835BTQ-R1K28B
SC835TQ-R920B
SC836BA-R1K28B
SC836BA-R920B
4U / Tower
SC743TQ-1200B
SC745TQ-R920B
SC747TG-R1400B-SQ
SC846BA-R920B
Management
Software
NMI
SuperDoctor 5
Watch Dog
Power Configurations
ACPI power management
Power-on mode for AC power recovery
PC Health Monitoring
Voltage
Monitors for CPU Cores, +1.8/3.3/5/12 V, 3.3/5.0 V Standby, VBAT, memory voltage
6 x Phase-switching voltage regulators
Fan
8 x 4-pin fan headers (up to 8 fans)
8 x fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature
Monitoring for CPU and chassis environment
CPU thermal trip support
8x Fan connectors for thermal control
Supports Thermal Monitor 2 (TM2)
PECI
LED
CPU / System overheat
Suspend static indicator
UID/Remote UID
Other Features
Chassis intrusion detection/header
Supports SDDC
Environmental
Operating Temperature Range
50 to 95ðF (10 to 35ðC)
Non-Operating Temperature Range
-40 to 158°F (-40 to 70°C)
Operating Relative Humidity
Range: 8 to 90% (non-condensing)
Non-operating Relative Humidity
Range: 5 to 95% (non-condensing)
General
Compatibility
RoHS
Dimensions
12.0 x 13.0" (30.5 x 33.0 cm)
Packaging Info
Package Weight
4.6 lb
Box Dimensions (LxWxH)
17 x 13.3 x 3"
