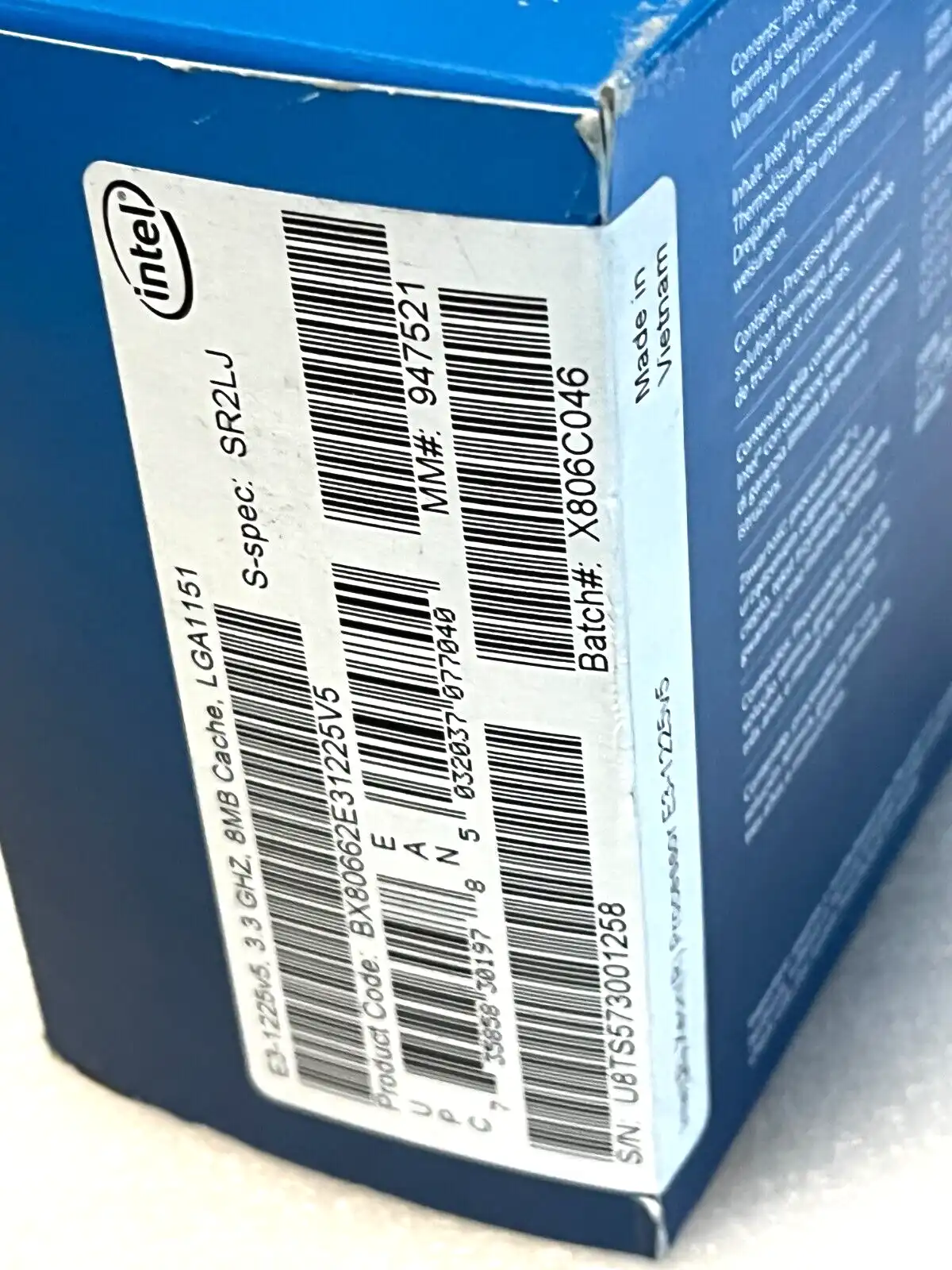

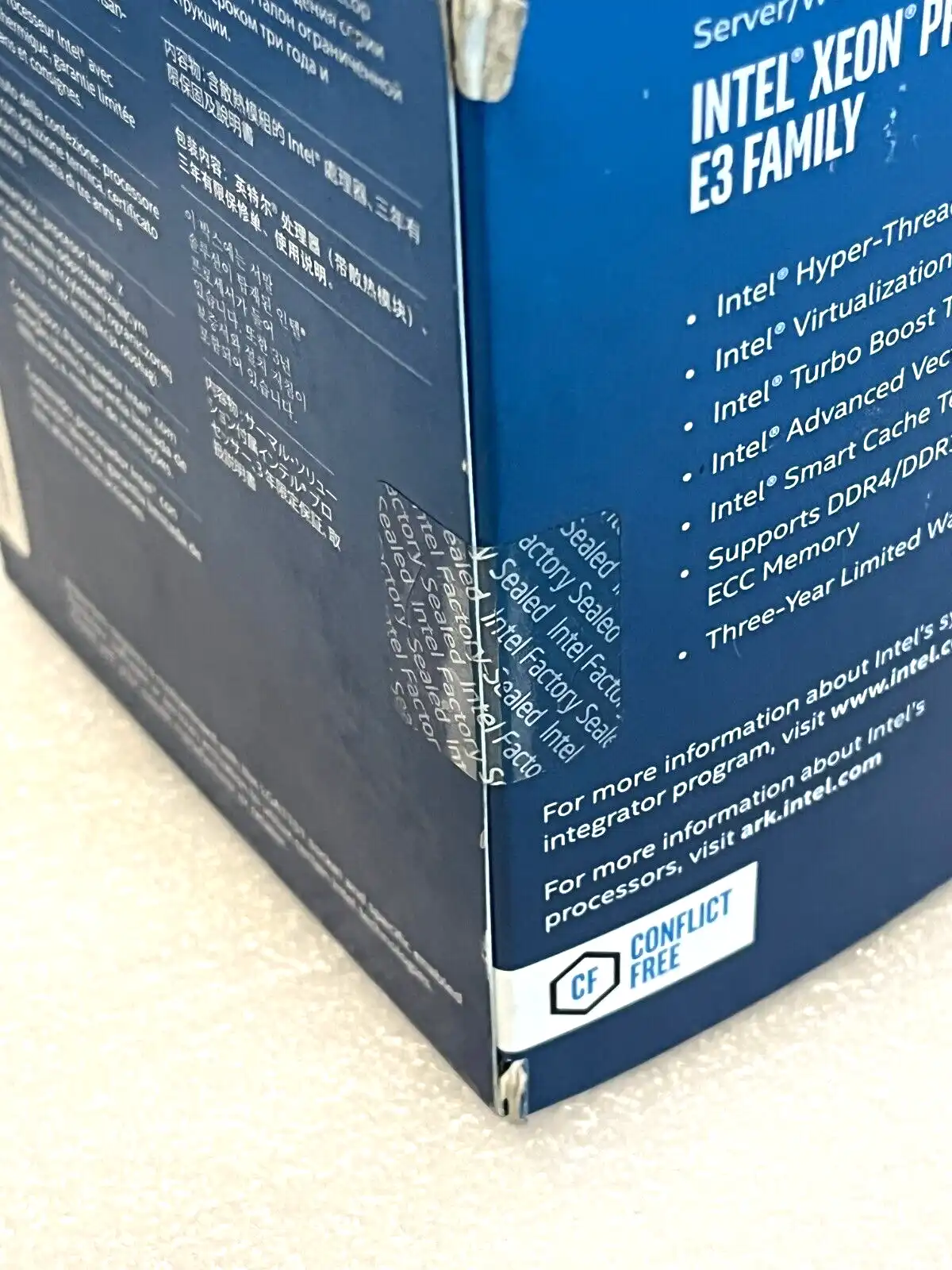

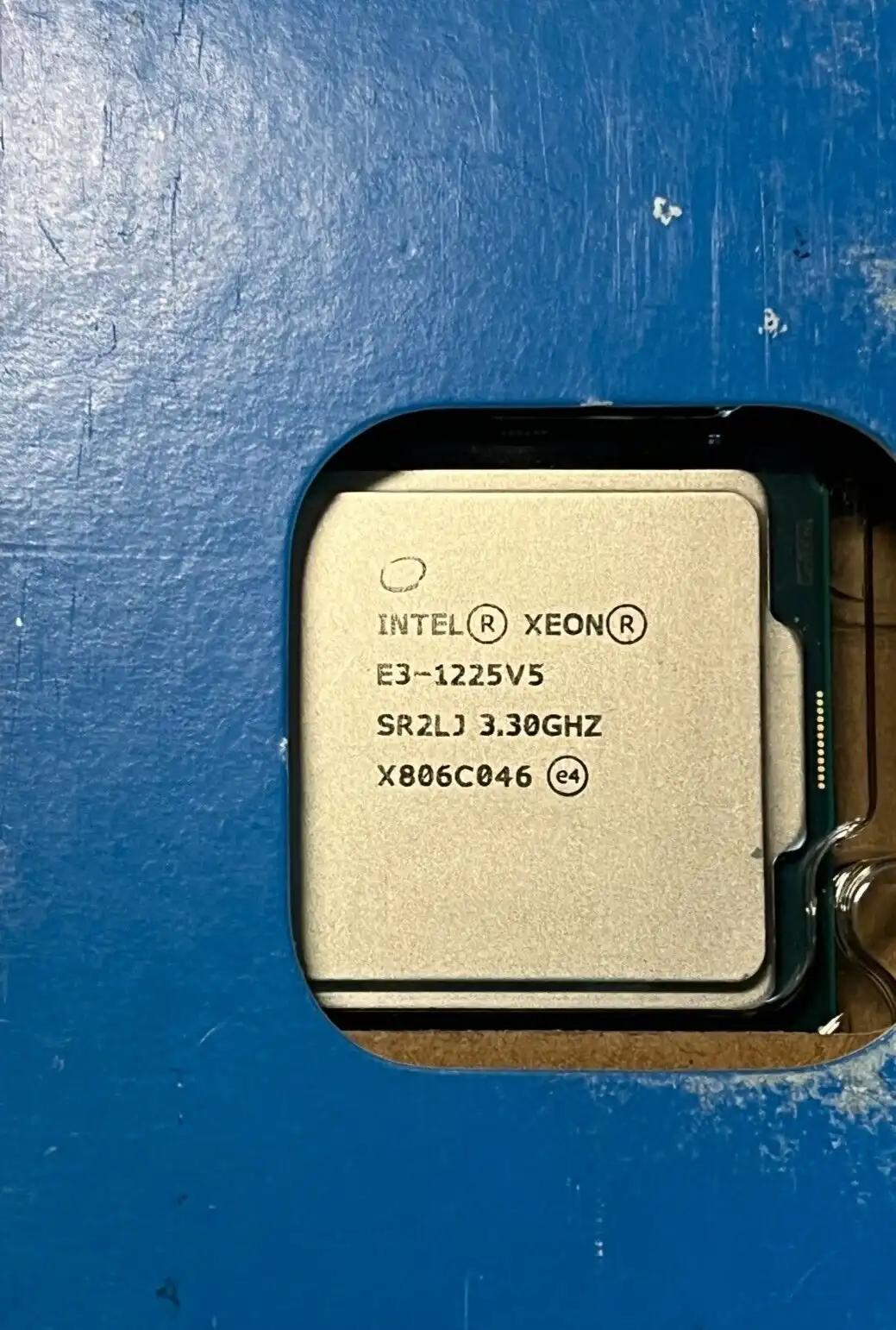

Intel Xeon E3-1225v5 LGA 3.3G 8M LGA1151 80W Skylake CPU w/ Fan in original box
Specifications
Specifications
| L2 Cache | 1 MB |
| Socket Type | LGA 1151 |
| L3 Cache | 8 MB |
| Clock Speed | 3.3 GHz |
| Processor Model | Intel Xeon E3-1225 V5 |
| Processor Type | Xeon |
| Number of Cores | 4 |
| Brand | Intel |
| MPN | SR2LJ |
Product Description
Intel® Xeon® Processor E3-1225 v5
8M Cache, 3.30 GHz
Essentials
- Product CollectionIntel® Xeon® Processor E3 v5 Family
- Code NameProducts formerly Skylake
- Vertical SegmentServer
- Processor NumberE3-1225V5
- Lithography14 nm
CPU Specifications
- Total Cores4
- Total Threads4
- Max Turbo Frequency3.70 GHz
- Intel® Turbo Boost Technology 2.0 Frequency‡3.70 GHz
- Processor Base Frequency3.30 GHz
- Cache8 MB Intel® Smart Cache
- Bus Speed8 GT/s
- TDP80 W
Supplemental Information
- Marketing StatusLaunched
- Launch DateQ4'15
- Servicing StatusEnd of Servicing Lifetime
- End of Servicing Updates DateFriday, September 30, 2022
- Embedded Options AvailableYes
- Use ConditionsPC/Client/Tablet
Memory Specifications
- Max Memory Size (dependent on memory type)64 GB
- Memory TypesDDR4-1866/2133, DDR3L-1333/1600 @ 1.35V
- Max # of Memory Channels2
- Max Memory Bandwidth34.1 GB/s
- ECC Memory Supported ‡Yes
GPU Specifications
- GPU Name‡Intel® HD Graphics P530
- Graphics Base Frequency400 MHz
- Graphics Max Dynamic Frequency1.15 GHz
- Graphics Video Max Memory64 GB
- Graphics OutputeDP/DP/HDMI/DVI
- 4K SupportYes, at 60Hz
- Max Resolution (HDMI)‡4096x2304@24Hz
- Max Resolution (DP)‡4096x2304@60Hz
- Max Resolution (eDP - Integrated Flat Panel)‡4096x2304@60Hz
- Max Resolution (VGA)‡N/A
- DirectX* Support12
- OpenGL* Support4.4
- Intel® Quick Sync VideoYes
- Intel® InTru™ 3D TechnologyYes
- Intel® Clear Video HD TechnologyYes
- Intel® Clear Video TechnologyYes
- # of Displays Supported ‡3
- Device ID0x191D
Expansion Options
- Scalability1S Only
- PCI Express Revision3.0
- PCI Express Configurations ‡1x16, 2x8, 1x8+2x4
- Max # of PCI Express Lanes16
Package Specifications
- Sockets SupportedFCLGA1151
- Max CPU Configuration1
- Package Size37.5mm x 37.5mm
Advanced Technologies
- Intel® Turbo Boost Technology ‡2.0
- Intel® Hyper-Threading Technology ‡No
- Intel® Transactional Synchronization ExtensionsYes
- Intel® 64 ‡Yes
- Instruction Set64-bit
- Instruction Set ExtensionsIntel® SSE4.1, Intel® SSE4.2, Intel® AVX2
- Idle StatesYes
- Enhanced Intel SpeedStep® TechnologyYes
- Thermal Monitoring TechnologiesYes
Security & Reliability
- Intel vPro® Eligibility ‡Intel vPro® Platform
- Intel® AES New InstructionsYes
- Secure KeyYes
- Intel® Software Guard Extensions (Intel® SGX)Yes with Intel® ME
- Intel® Memory Protection Extensions (Intel® MPX)Yes
- Intel® OS GuardYes
- Intel® Trusted Execution Technology ‡Yes
- Execute Disable Bit ‡Yes
- Intel® Boot GuardYes
- Intel® Virtualization Technology (VT-x) ‡Yes
- Intel® Virtualization Technology for Directed I/O (VT-d) ‡Yes
- Intel® VT-x with Extended Page Tables (EPT) ‡Yes
