| Product Details |
Manufacturer Part Number
|
MR.JPX11.007 |
EAN
|
4713883388504 |
| Technical Information |
Projection Method
|
Front
Rear
Ceiling
Rear Ceiling
|
Platform Supported
|
PC
Mac
|
Compatibility
|
Windows PC
Mac PC
|
| Projection Lens |
Lens Type
|
Manual Zoom
Manual Focus
|
Minimum Lens Aperture
|
F/2.5 |
Maximum Lens Aperture
|
F/3.26 |
Minimum Focal Length
|
20.91 mm |
Maximum Focal Length
|
32.62 mm |
Minimum Diagonal Image Size
|
508 mm |
Maximum Diagonal Image Size
|
7.62 m (300") |
Minimum Projection Distance
|
1 m |
Maximum Projection Distance
|
9.30 m |
Optical Zoom
|
1.6x |
| Lamp |
Lamp Type
|
Laser |
Number of Lamps
|
1 |
Normal Mode Lamp Life
|
20000 Hour |
Economy Mode Lamp Life
|
30000 Hour |
| Image |
Native Resolution
|
3840 x 2160 |
Maximum Vertical Sync
|
120 Hz |
Minimum Vertical Sync
|
24 Hz |
Maximum Horizontal Sync
|
135 kHz |
Minimum Horizontal Sync
|
15 kHz |
Color Supported
|
1.07 Billion Colors (30-bit) |
Maximum Resolution
|
3840 x 2160 |
Native Aspect Ratio
|
16:9 |
Compatible Aspect Ratio
|
4:3 |
Throw Ratio
|
1.39 to 2.22 (1651 mm@2000 mm) |
Standard Mode Brightness
|
3000 lm |
Low Mode Brightness
|
2400 lm |
Contrast Ratio
|
1,500,000:1 |
| Video |
Video Signal Standard
|
HDTV |
| Audio |
Number of Speakers
|
2 |
Speaker Output Mode
|
Stereo |
Output Power
|
5 W |

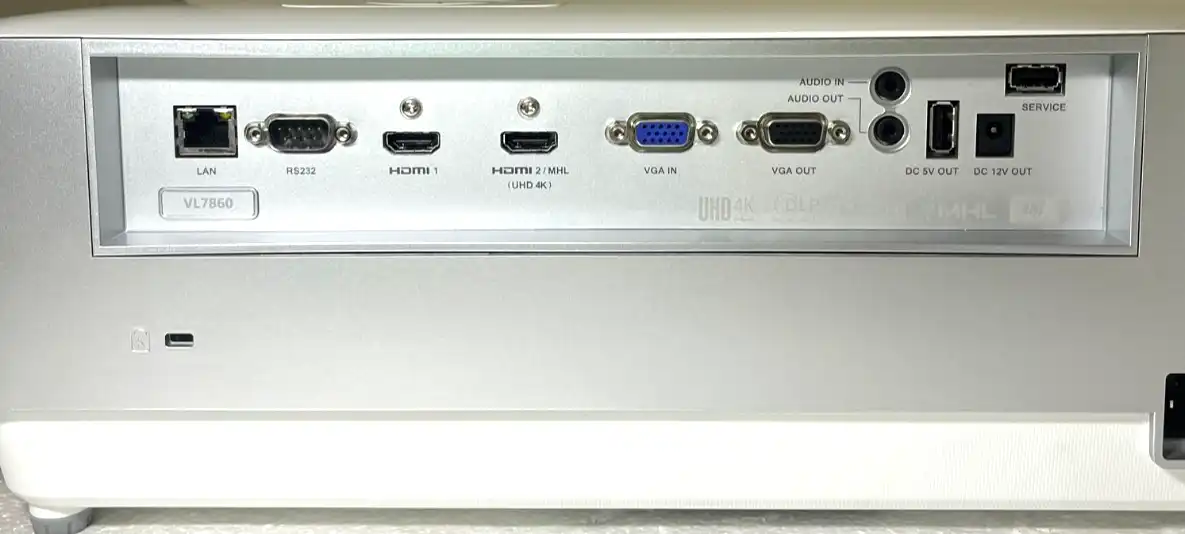

| Interfaces/Ports |
USB
|
Yes |
VGA In
|
Yes |
VGA Out
|
Yes |
Audio Line In
|
Yes |
Audio Line Out
|
Yes |
HDMI
|
Yes |
Network (RJ-45)
|
Yes |
| Power Description |
Power Supply
|
100 V AC~240 V AC |
Input Voltage
|
120 V AC
230 V AC
|
| Physical Characteristics |
Colour
|
White |
Height
|
157 mm |
Width
|
458 mm |
Depth
|
289 mm |
Weight (Approximate)
|
8.50 kg |
Fan Noise
|
30 dB Approximate Standard Mode
26 dB Approximate Economy Mode
24 dB Approximate Silent Mode
|
Temperature
|
0°C to 40°C |
Humidity
|
80% Maximum Relative Humidity |
| Miscellaneous |
Package Contents
|
- VL7860 DLP Projector
- AC Power Cord
- Battery for Remote Control
- HDMI Cable
- Quick Start Guide
- Remote Control
- User's Guide (CD-ROM)

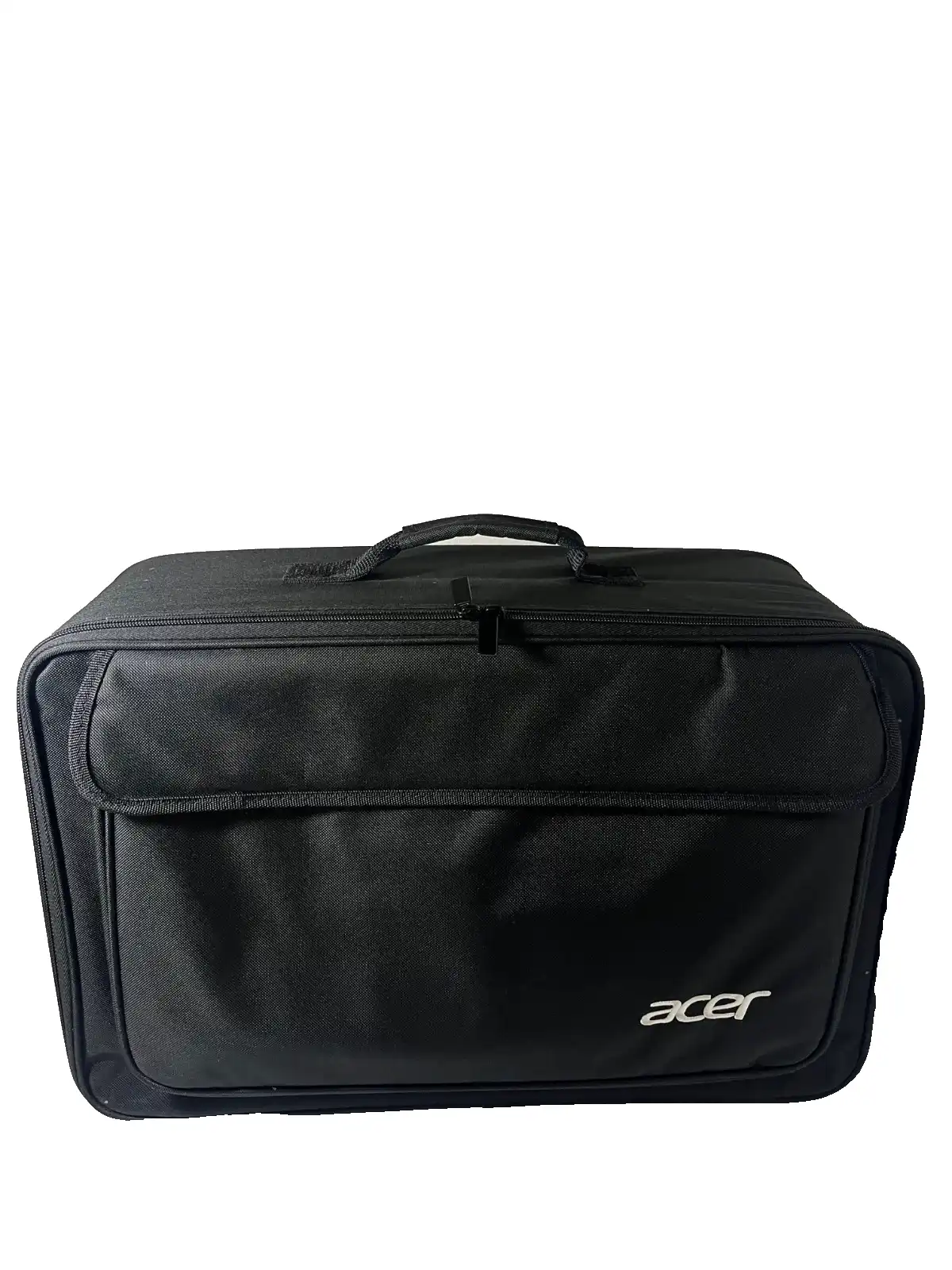

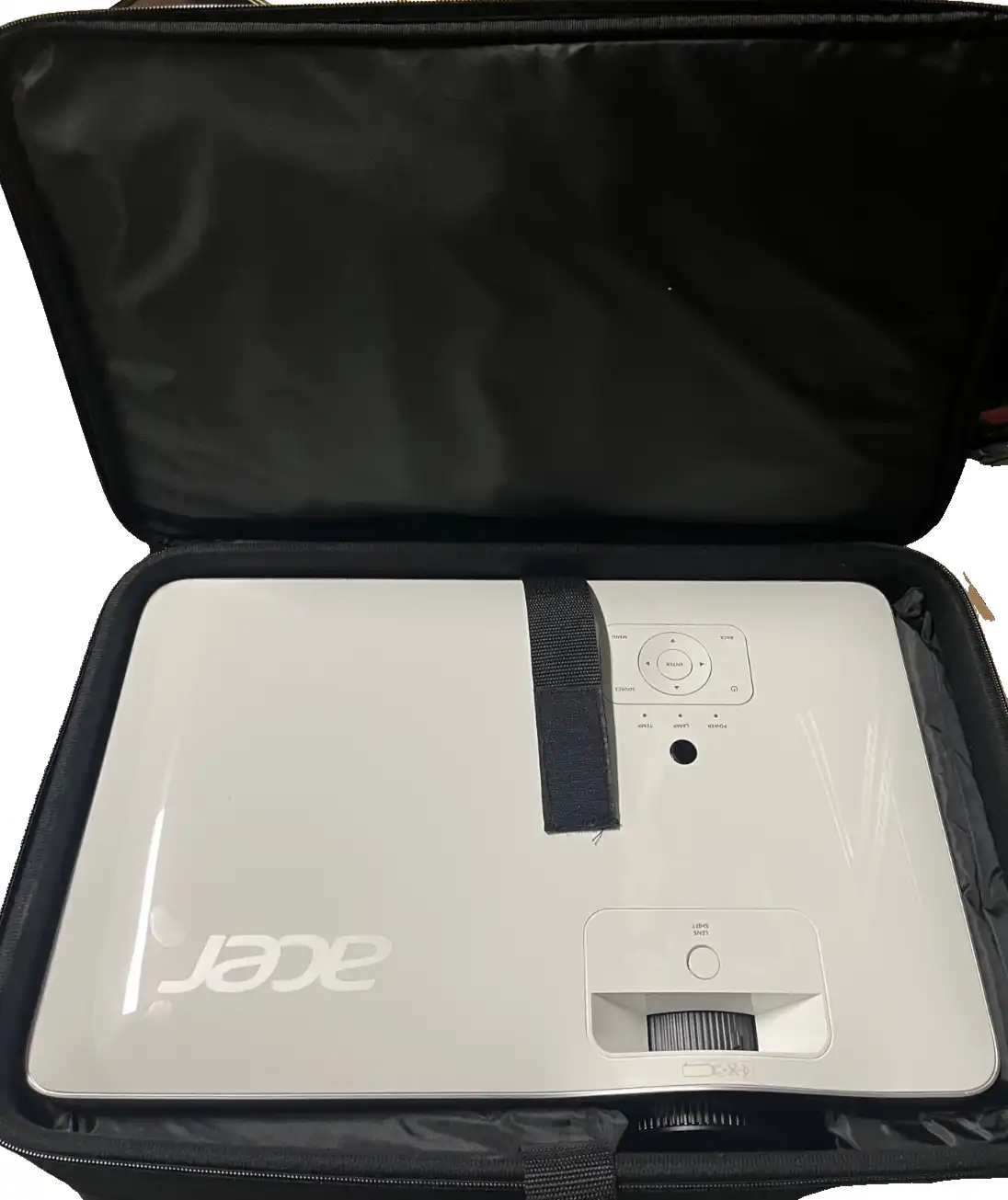

- Carrying Case
|
| Warranty |
Warranty
|
3 months warranty |
