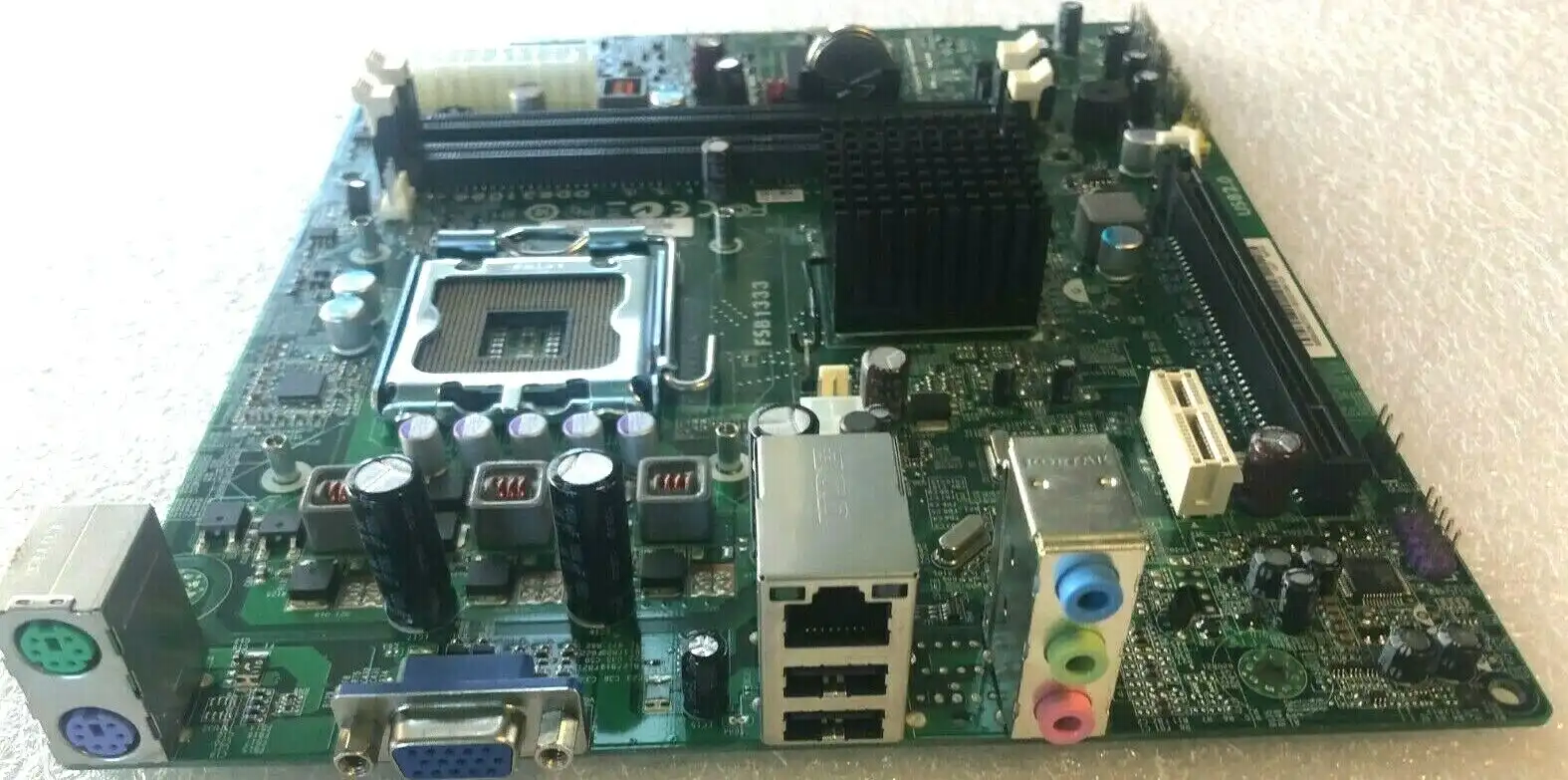

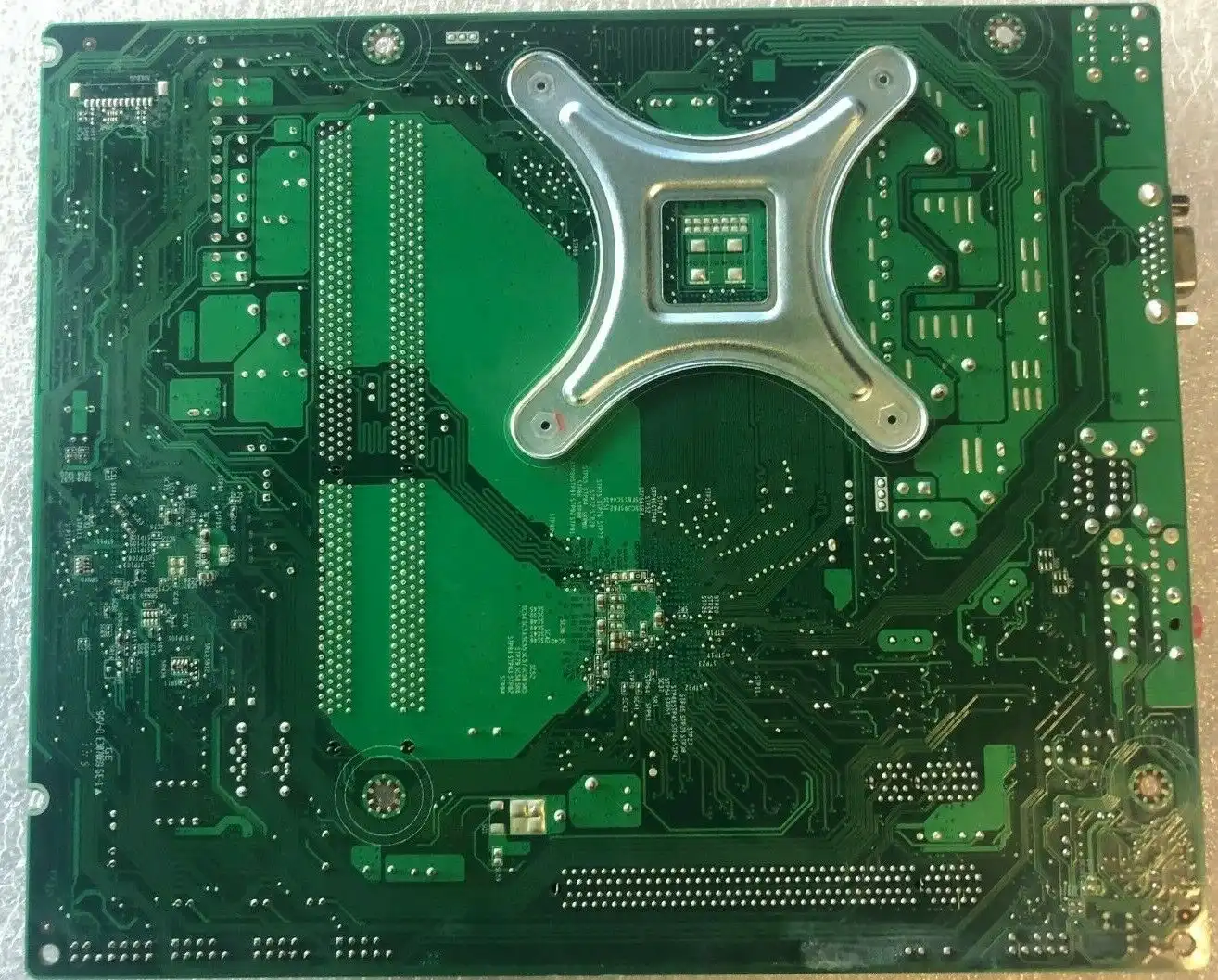

Acer Aspire X1920 G41T-AD socket 775 motherboard MB.SG807.001
M/b is brand new. OEM packaging. No accessories (cables, CD's, backplate) are included. Just the board itself.
Genuine Acer part.
30 days warranty back-to-base.
G41T-AD Motherboard Specifications.
| CPU |
Support – Intel Core 2 Duo Dual-Core, Pentium Dual-core, Celeron.
|
| Socket Type |
LGA 775 |
| FSB |
1333/1066/800 MHz |
| Chipset |
North Bridge – Intel G41
South Bridge – Intel ICH7
|
| Integrated Graphics |
Intel GMA X4500 |
| Memory |
2 x 240-pin DDR3 DIMM slots Supports Dual Channel DDR3 1333/1066 MHz non-ECC, un-buffered memory (Max 4GB)
|
| Expansion Slots |
1 x PCI Express x16
1 x PCI Express x1
|
| Storage |
2 x SATAII 3Gb/s connectors
Supports HDDs, Internal Solid State Drive (SSD)
|
| Audio |
Realtek ALC662 – High Definition |
| Ethernet |
Realtek Gigabit – 10/100/1000Mb/s |
| USB |
Total 8 |
| Rear Panel |
1 x VGA port
2 x USB 2.0 ports
1 x RJ45 LAN port
1 x PS/2 green color for mouse
1 x PS/2 purple color for keyboard
1 x Audio I/O – Line-in/out, Microphone
|
| Internal |
2 x USB headers
1 x 4-pin CPU Fan connector
1 x 3-pin Rear Fan connector
1 x 4-pin ATX 12V Power connector
1 x 24-pin ATX Power connector
1 x Clear CMOS jumper
1 x Front Audio header
1 x Front Panel header
1 x Battery socket (3V)
|
| BIOS |
|
| Form Factor |
Micro-ATX |
|
