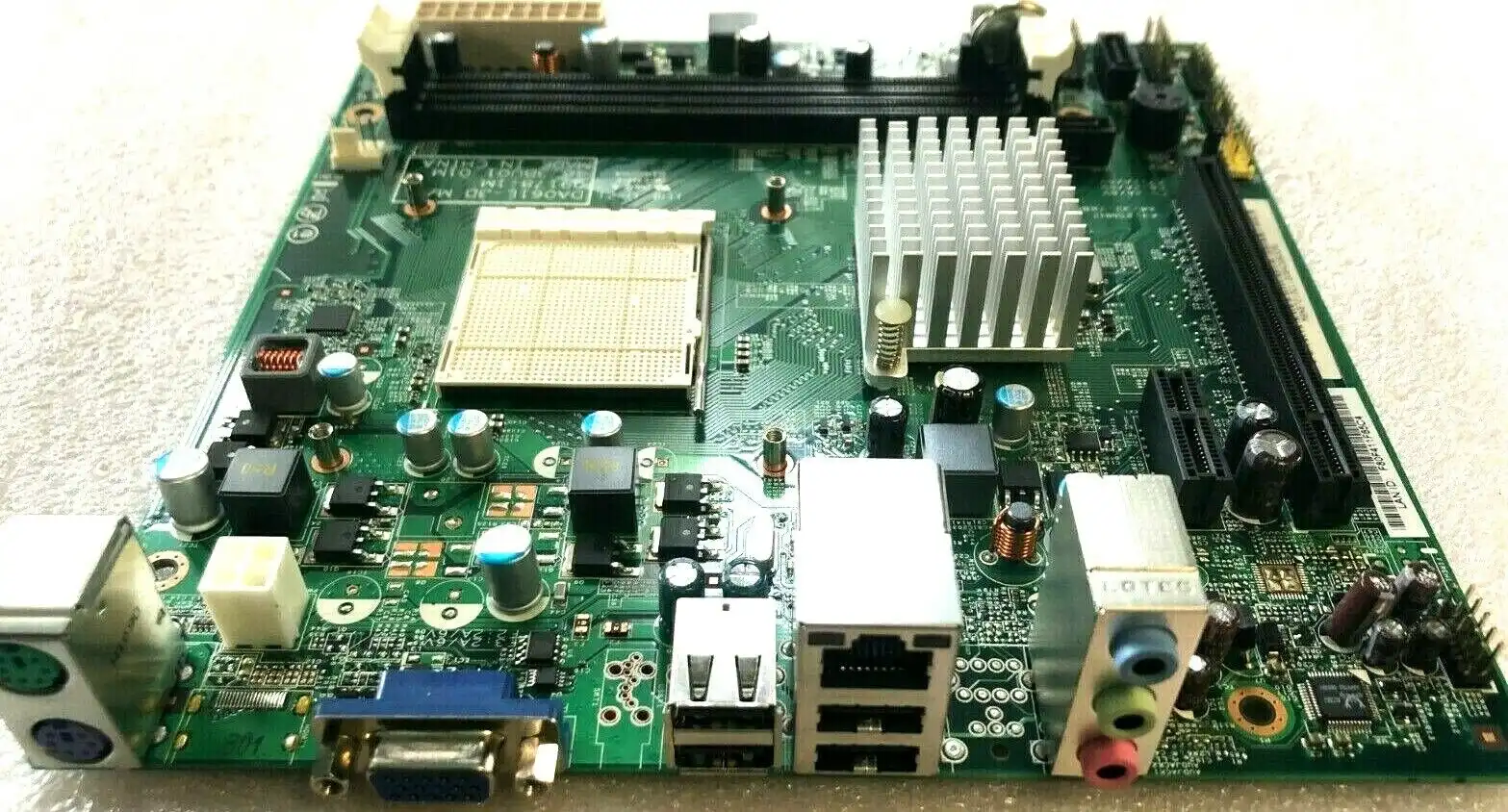

| Acer Aspire X1400 DA061L-3D socket AM3 motherboard MB.NBT01.001
M/b is brand new. OEM packaging. No accessories (cables, CD's, backplate) are included. Just the board itself.
Genuine Acer part.
30 days warranty back-to-base.

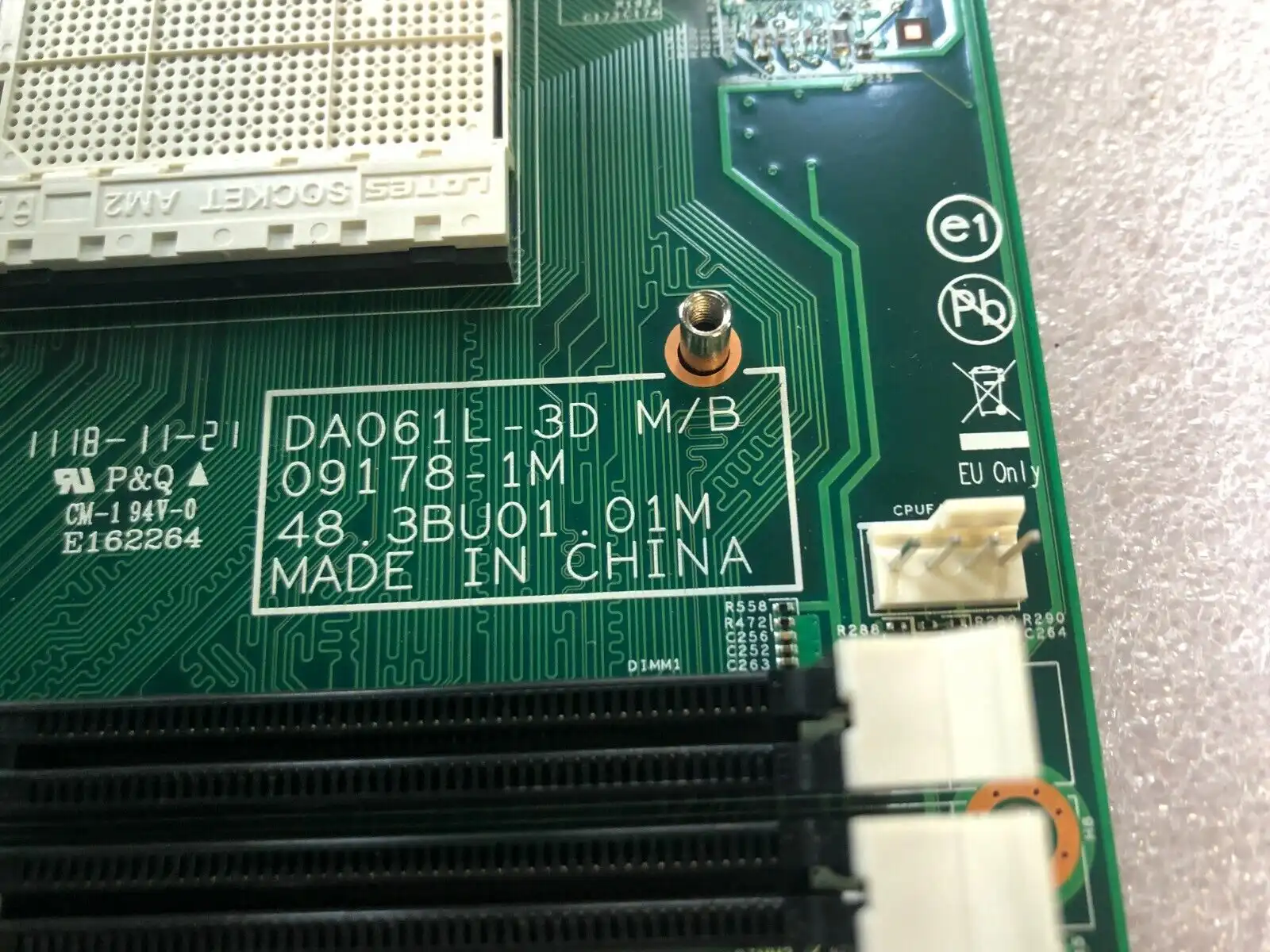

Acer DA061L-3D M/B Motherboard Specifications.
| CPU |
Processor Support Socket AM3 (941 pin). AMD Athlon II X4 Quad, Athlon II X3, Athlon II X2. (Max 95W)
* Phenom II X4 840 (3.2GHz)
* Athlon II X4 650, 645, 640, 635, 630, 620 (Core Propus)
* Phenom II X3 705e, 700e
* Athlon II X3 405e, 400e (Core Rana)
* Sempron 140, 150
* Athlon II X2 215, 240e, 235e, 255, 250, 245, 240, 260u, 250u, 160u, 150u
|
|
Chipset
|
NVIDIA GeForce 6150SE – nForce 430 (MCP61P)
|
|
Integrated Graphics
|
GeForce 6150 SE
|
|
Memory
|
2 * 240-pin DDR3 DIMM slots Supports Dual Channel DDR3 1333/1066 MHz non-ECC, un-buffered. (8GB Max)
|
|
Expansion Slots
|
1 * PCI Express x1
1 * PCI Express x16
|
|
Storage
|
2 * SATAII 3Gb/s connectors
Supports HDDs, Internal Solid State Drive (SSD)
|
|
Audio
|
Realtek ALC662 – High Definition
|
|
LAN
|
Realtek RTL8211CL (Gigabit)
|
|
Rear Panel
|
1 x PS/2 mouse (green) Port
1 x PS/2 keyboard (purple) Port
1 x VGA Port
1 x RJ45 LAN Port
1 x Audio I/O
4 x USB 2.0 Ports
|
|
Internal
|
3 x USB headers
1 x 4-pin CPU Fan connector
1 x 4-pin ATX 12V Power connector
1 x 20-pin ATX Power connector
1 x Front Audio header
1 x Front Panel header
1 x Battery socket (3V)
1 x Clear CMOS jumper
|
|
BIOS
|
|
|
Form Factor
|
Micro-ATX
|
|
