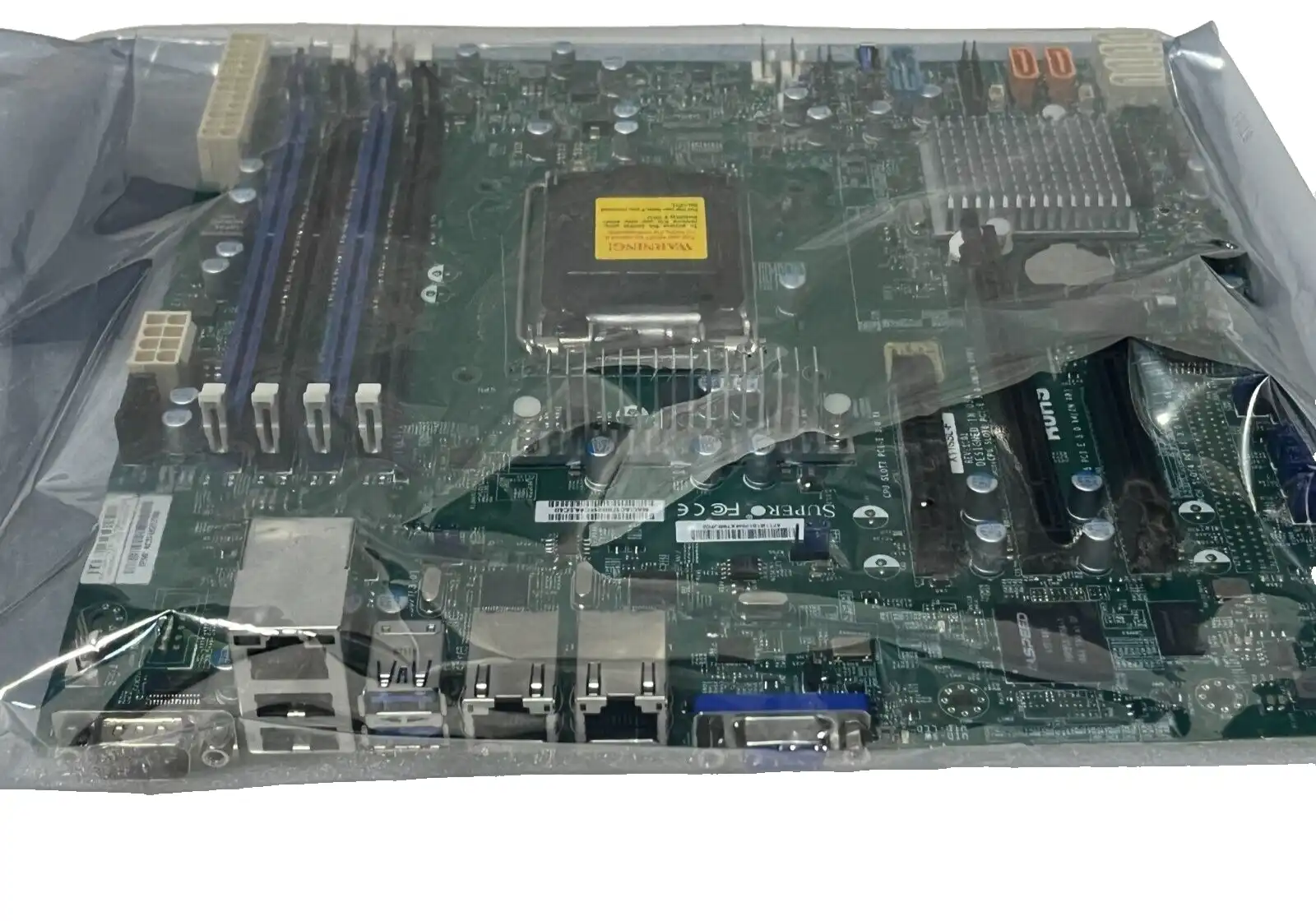

Acer Altos T110 F4 server motherboard SuperMicro X11SSL-F LGA1151 SB.RBJ11.001
Acer Altos T110 F4 server motherboard SuperMicro X11SSL-F LGA1151 SB.RBJ11.001Acer Altos T110 F4 server motherboard SuperMicro X11SSL-F LGA1151 SB.RBJ11.001Acer Altos T110 F4 server motherboard SuperMicro X11SSL-F LGA1151 SB.RBJ11.001Acer Altos T110 F4 server motherboard SuperMicro X11SSL-F LGA1151 SB.RBJ11.001Acer Altos T110 F4 server motherboard SuperMicro X11SSL-F LGA1151 SB.RBJ11.001

Acer Altos T110 F4 server motherboard SuperMicro X11SSL-F LGA1151 SB.RBJ11.001

$176.00
Out of Stock
SKU: 166969804366
Buy Now - Visit Store

Specifications

Specifications

Socket Type LGA 1151
Compatible CPU Brand Intel
Number of Memory Slots 4
Custom Bundle No
Memory Type DDR4 SDRAM
Brand Supermicro
Form Factor MicroATX
Modified Item No
Model X11SSL-F

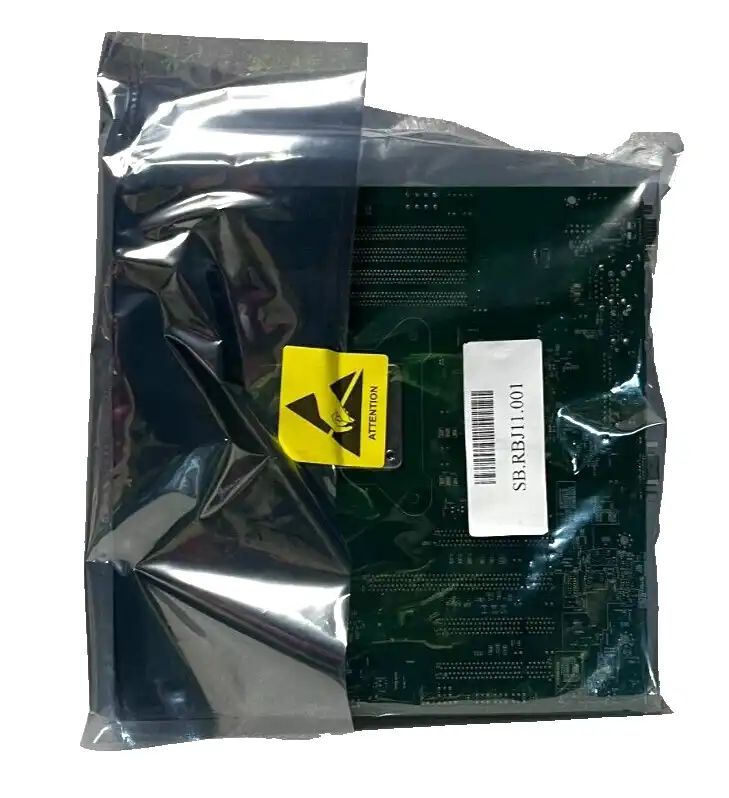

MPN SB.RBJ11.001
Non-Domestic Product No

Product Description

Key Features

    • Single socket H4 (LGA 1151) supports Intel® Xeon® processor E3-1200 v6/v5, Intel® 7th/6th Gen. Core™ i3 series,
    • Intel® Celeron® and Intel® Pentium®
  2. Intel® C232 chipset
  3. Up to 64GB Unbuffered ECC UDIMM DDR4 2400MHz; 4 DIMM slots
    • Expansion slots:
    • 1 PCIe 3.0 x8 (in x16),
    • 1 PCIe 3.0 x8,
    • 1 PCIe 3.0 x4 (in x8)
  5. Dual GbE LAN with Intel® i210-AT
  6. 6 SATA3 (6Gbps) via C232; RAID 0, 1, 5, 10

Product SKUs
MBD-X11SSL-F
Physical Stats
Form Factor
  • Micro-ATX
Dimension
  • 9.6" x 9.6" (24.38cm x 24.38cm)
Processor
CPU
  • Intel® Celeron®, Intel® Pentium®, Intel® 7th/6th Generation Core i3 series, Intel® Xeon® processor E3-1200 v6/v5
  • Single Socket Socket H4 (LGA-1151) supported, CPU TDP supports Up to 80W TDP
Note
  • BIOS version 2.0 or above is required to support 7th Generation Intel® Core™ i3 Processors and Intel® Xeon® Processor E3-1200 v6 series
System Memory
Memory Capacity
  • 4 DIMM slots
  • 64GB Unbuffered ECC UDIMM, DDR4-2400MT/s
Memory Type
  • 2400/2133/1866/1600 MT/s SDRAM 72-bit, 288-pin gold-plated DIMMs
DIMM Sizes
  • 4GB, 8GB, 16GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
On-Board Devices
Chipset
  • Intel® C232
SATA
  • Intel® C232 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
  • ASPEED AST2400 BMC
Graphics
  • 1 ASPEED AST2400 BMC port(s)
Network Controllers
  • Dual LAN with Intel® Ethernet Controller I210-AT
Input / Output
USB
  • 6 USB 2.0 port(s) (4 via header; 2 rear)
  • 2 USB 3.0 port(s) (2 rear)
  • 3 USB 3 port(s) (2 via header; 1 type A)
Video Output
  • 1 VGA port(s)
Serial Port
  • 1 COM Port(s) (1 rear)
TPM
  • 1 TPM Header

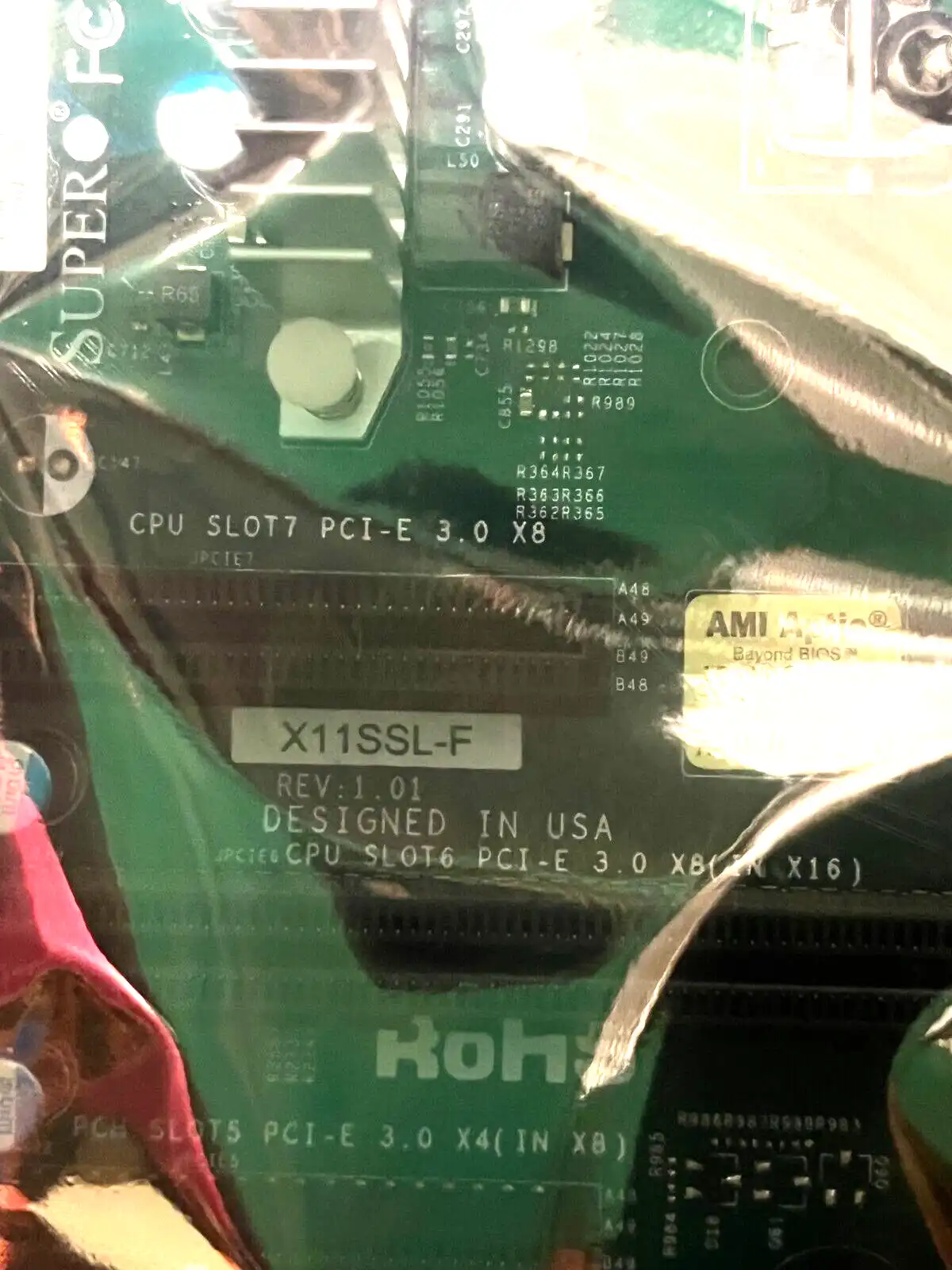

Expansion Slots
PCIe
  • 1 PCIe 3.0 x8 (in x16 slot),
  • 1 PCIe 3.0 x8,
  • 1 PCIe 3.0 x4 (in x8 slot)
System BIOS
BIOS Type
  • 128MB SPI Flash EEPROM with AMI BIOS
BIOS Features
  • ACPI 1.0 / 2.0 / 3.0 / 4.0
  • APM 1.2
  • DMI 2.3
  • Hardware BIOS Virus protection
  • PCI 2.3
  • Plug and Play (PnP)
  • SMBIOS 2.7.1
  • UEFI 2.3.1
  • USB Keyboard support
Management
Software
  • SuperDoctor® 5, NMI, SUM, IPMI2.0, Watchdog
Power Configurations
  • Power-on mode for AC power recovery, ACPI Power Management
PC Health Monitoring
Voltage
  • VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chassis intrusion header, +5V standby, +5V, +3.3V, +12V
LED
  • UID/Remote UID
  • CPU / System Overheat LED
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • Thermal Monitor 2 (TM2) support
  • PECI
FAN
  • 5x 4-pin fan headers (up to 5 fans)
  • Thermal control tachometer fan connectors
  • Fan speed control
  • Overheat LED indication
Other Features
  • WOL
  • CPU thermal trip support for processor protection
  • Control of power-on for recovery from AC power loss
Operating Environment
Operating Temperature Range
  • 0°C - 50°C (32°F - 122°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
