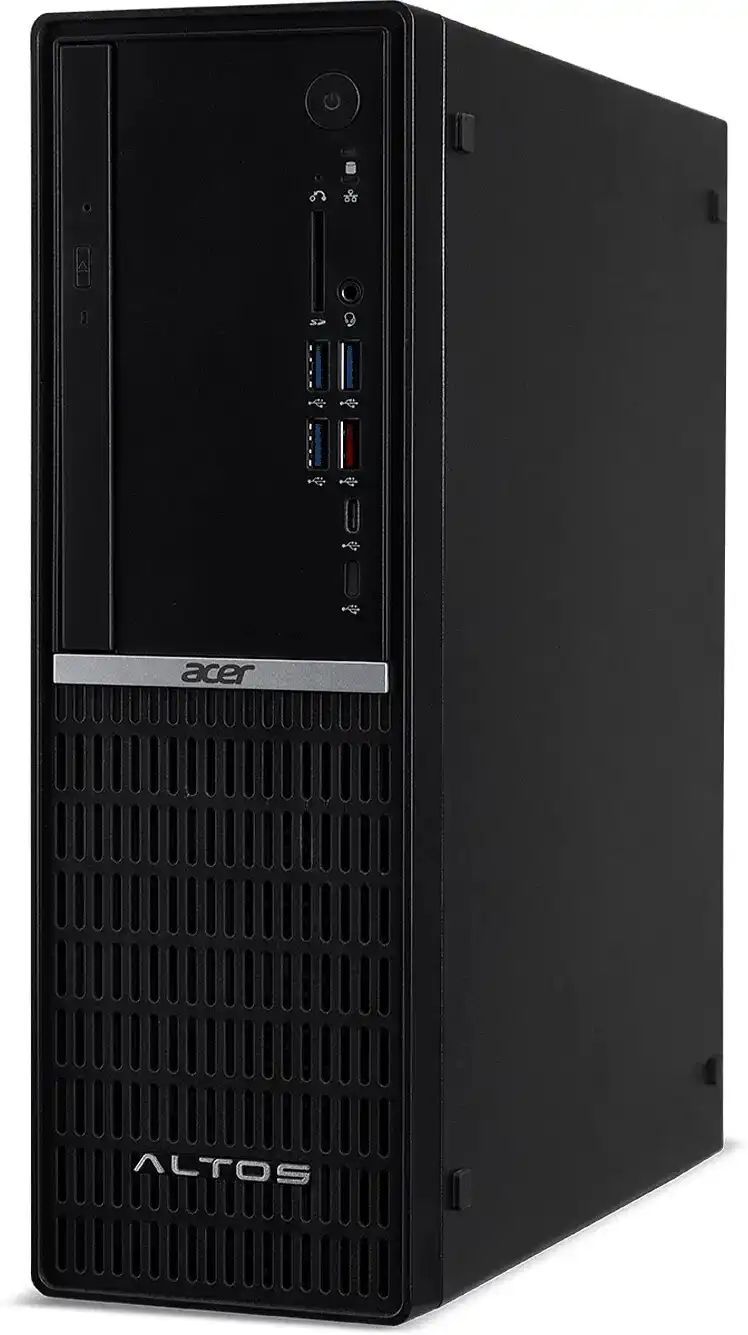

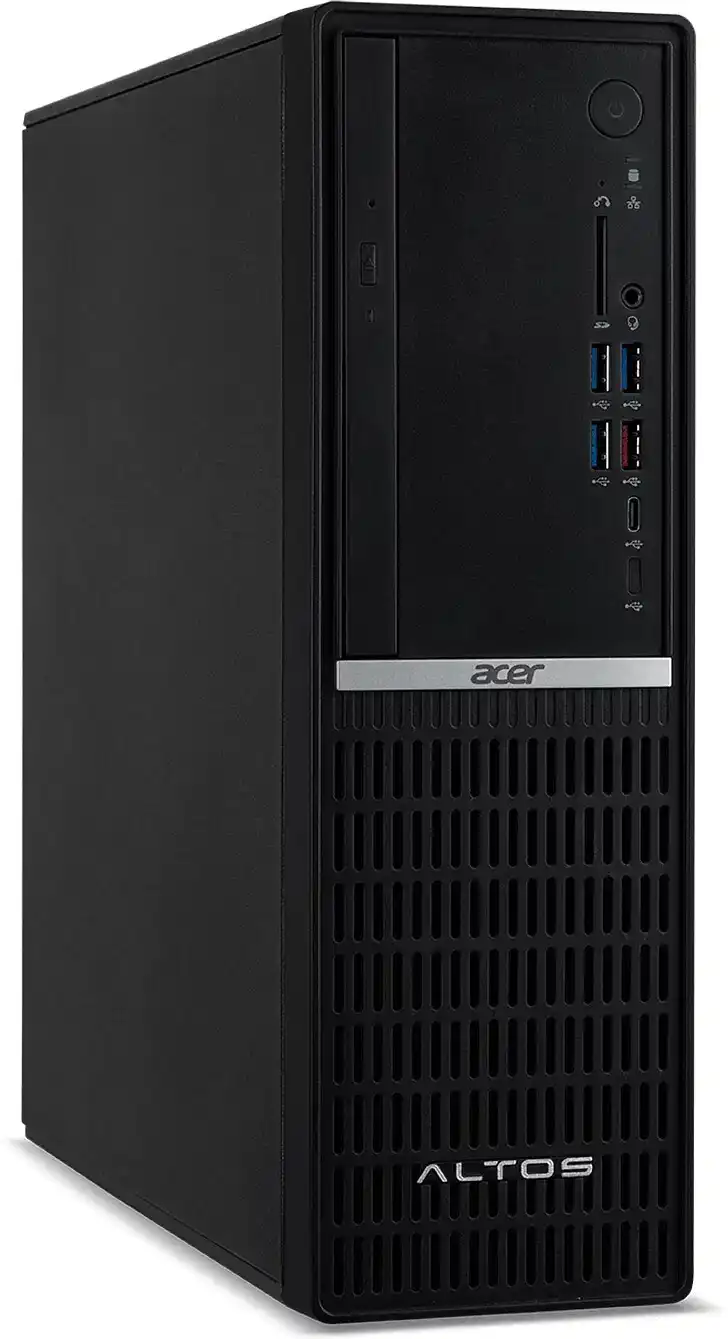

The Acer Altos P10 F9 SFF (Small Form Factor) is a compact workstation designed for high-performance computing needs. The model UD.L0USA.062 is equipped with an Intel Core i5-14400 processor, 16GB of RAM, and a 512GB SSD, running on Windows 11 Pro.  This compact, high-performance workstation is built to handle professional workloads efficiently while offering expandability for future upgrades.

Features

Processor: 14th Generation Intel® Core™ i5-14400, offering robust performance for demanding applications.
Memory: 16GB of DDR5 RAM, expandable to meet specific workload requirements.
Storage: 512GB NVMe SSD, providing fast data access speeds and quick boot times.
Graphics: Integrated Graphics: Intel UHD 730
Operating System: Pre-installed with Windows 11 Pro, ensuring compatibility with modern software and security features.
Connectivity: Multiple USB ports, 2 x Display Port, HDMI port, WiFi and Ethernet for versatile connectivity options.

Technical Specifications

Processor (CPU)
Model: Intel Core i5-14400
Generation: 14th Generation
Cores: 14 cores (6 performance cores, 8 efficiency cores)
Threads: 20 threads
Base Clock Speed: 2.5 GHz (Performance cores), 1.9 GHz (Efficiency cores)
Max Turbo Frequency: Up to 5.0 GHz
Cache: 24MB Intel Smart Cache
TDP: 65W

Memory (RAM)
Size: 16GB DDR4
Type: DDR5 4800 MHz
Max Supported Memory: Typically 128GB (depending on motherboard configuration)

Storage
Primary Storage: 512GB SSD (NVMe, PCIe Gen3)
Storage Type: Solid-State Drive (SSD) for fast boot times and quick data access

Graphics
Graphics: Integrated Graphics: Intel UHD 730

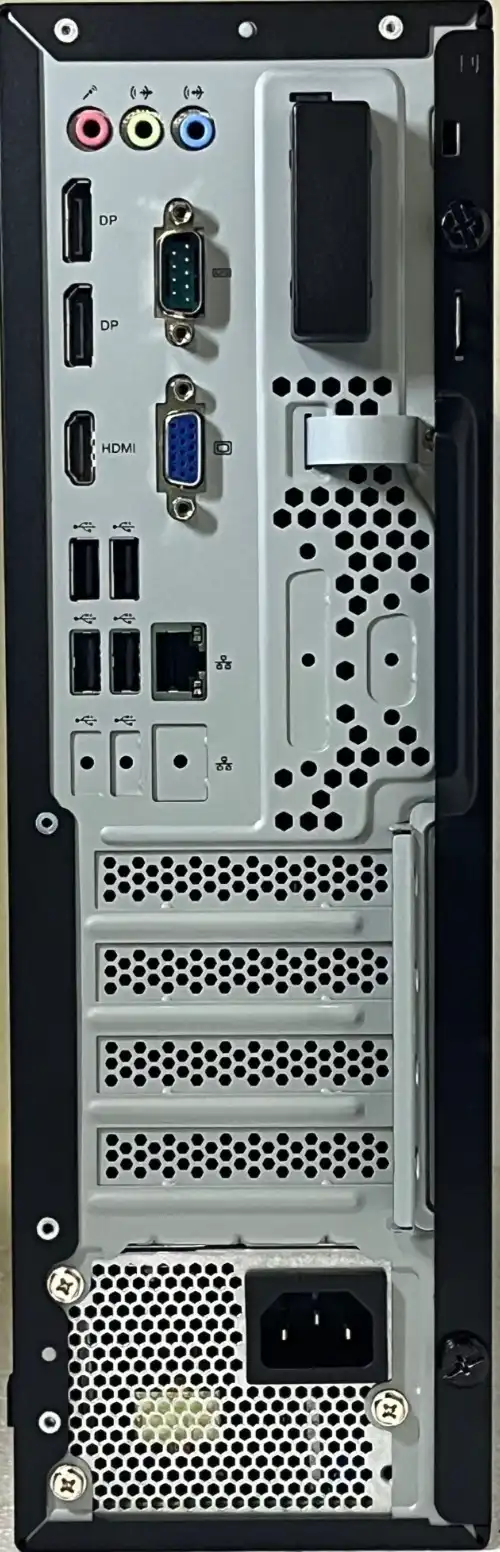

Graphics Output: 2 x DisplayPort, 1 x HDMI Port

Operating System
Pre-installed OS: Windows 11 Pro Education(64-bit)

Expansion Slots
PCIe Slots: Multiple PCIe Gen4 slots for expansion (for additional GPUs, storage, or network cards)

Connectivity
USB Ports: USB 3.2 Type-A (multiple), USB 2.0 (multiple)
Ethernet: 1 x Gigabit Ethernet (RJ45)
Wi-Fi: No
Bluetooth: Optional depending on configuration
Audio: Integrated audio ports (headphone and microphone jacks)

Power Supply
Wattage: 300W
Energy Efficiency: Designed for energy-efficient performance

Cooling
Cooling System: Efficient thermal design with a combination of fans and heat dissipation to maintain optimal system temperatures during high workloads

Form Factor
Type: Small Form Factor (SFF)
Size: 10L (compact design, ideal for limited workspace)

Physical Dimensions
Width: 3.85 in (98mm)
Depth: 12.87 in (327mm)
Height: 12.3 in (312mm)
Weight: Approximately 6.5-8 kg (depending on configuration)

Other Features
Security: TPM 2.0 for enhanced hardware security
USB-C: Optional USB Type-C ports may be available depending on configuration
VESA Mount: Some configurations support VESA mounts for wall-mounting or integration into custom workstations

Intended Use
The Acer Altos P10 F9 is designed for:
Business/Enterprise: Handling business applications, document management, and office software.
Software Development: Efficient for compiling code, running IDEs, and development environments.
Virtualization: Supports running virtual machines for testing or development.
