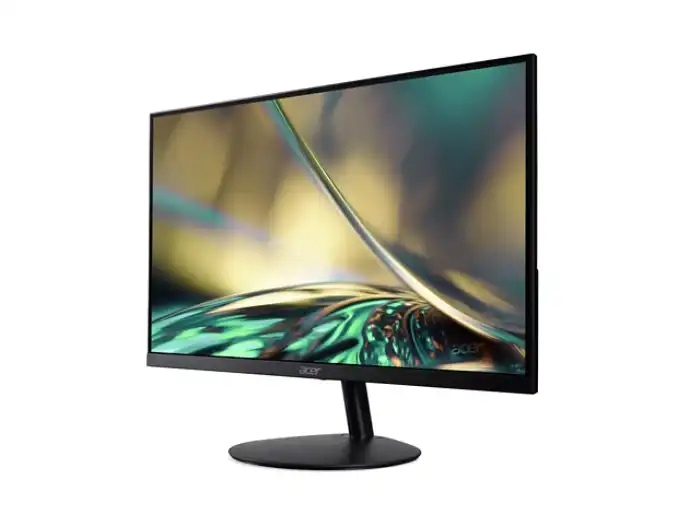

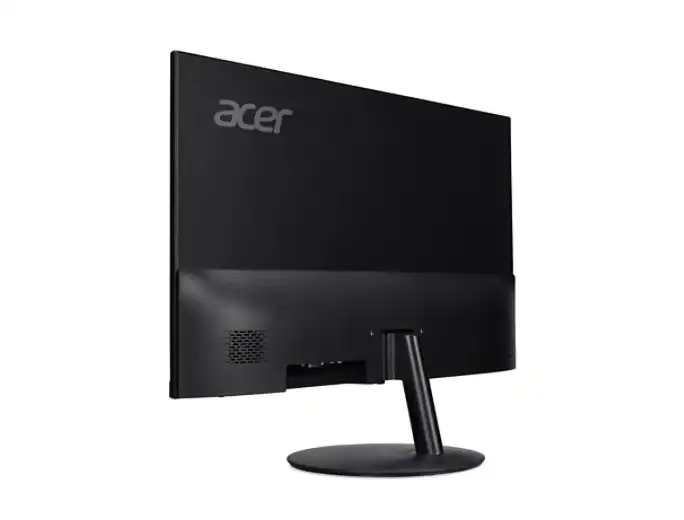

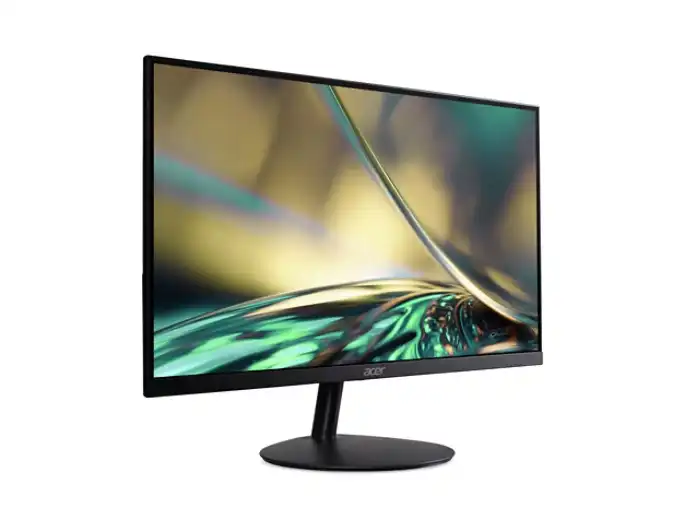

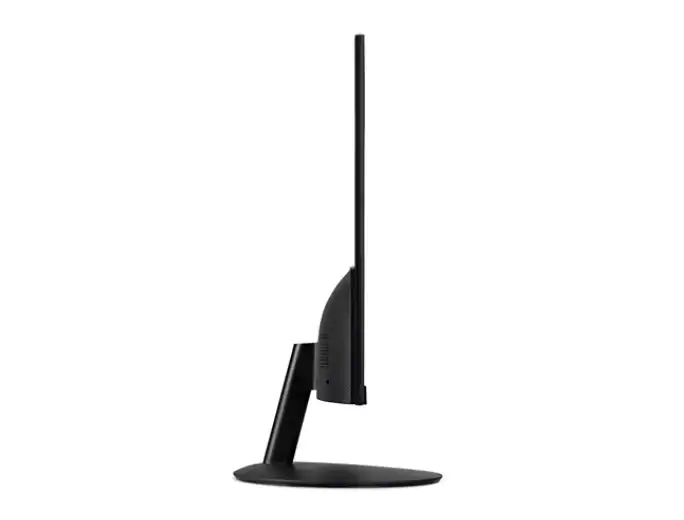

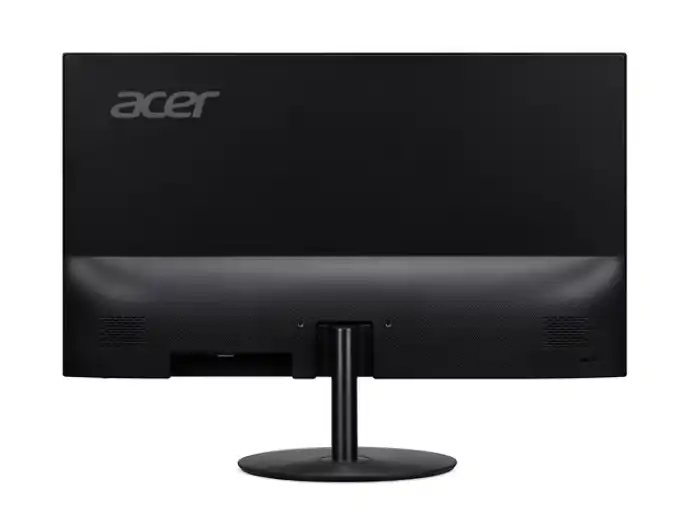

23.8" Acer SB2 gaming monitor SB242Y 1920x1080 1ms 100Hz
Specifications
Product Description
Technical Information
Number of Screens
- 1
Viewable Screen Size
- 23.8"
Screen Mode
- Full HD
Panel Technology
- Vertical Alignment (VA)
Response Time
- 1 ms
Aspect Ratio
- 16:9
Pixel Pitch
- 0.27 mm
Horizontal Viewing Angle
- 178°
Vertical Viewing Angle
- 178°
Backlight Technology
- LED
Mount Type
- Wall Mountable
Horizontal Frequency
- 31 kHz to 84.50 kHz - VGA
- 31 kHz to 112.50 kHz - HDMI 1.4
Vertical Frequency
- 75 Hz
- 48 Hz to 100 Hz - HDMI 1.4
Tilt Angle
- -5° to 15°
Adjustable Display Pivot
- No
Active Display Area (mm)
- 527x296
Frequency (Horizontal/Vertical)
- VGA:31KHz-84.5KHz/75Hz
- HDMI 1.4:31KHz-112.5KHz/48Hz-100Hz
Physical Characteristics
VESA Mount Compatible
- Yes
VESA Mount Standard
- 75 x 75
Colour
- Black
Height
- 320 mm
Width
- 539 mm
Depth
- 41 mm
Height with Stand
- 398 mm
Width with Stand
- 539 mm
Depth with Stand
- 189 mm
Weight (Approximate)
- 2.39 kg
Weight with Stand (Approximate)
- 2.64 kg
Video
Maximum Resolution
- 1920 x 1080
Standard Refresh Rate
- 100 Hz
Colour Supported
- 16.7 Million Colours
Colour Depth
- 6-bit+FRC
Dynamic Contrast Ratio
- 100,000,000:1
Brightness
- 250 cd/m²
Color Gamut
- 72% NTSC
Native Contrast Ratio
- 3,000:1
Miscellaneous
Package Contents
- 1 x SB242Y H Widescreen LCD Monitor
- 1 x HDMI Cable
- 1 x Power Cord (Australia)
Interfaces/Ports
HDMI
- Yes
HDMI Version
- 1.4
VGA
- Yes
Power Description
Standby Power Consumption (Energy Star)
- 500 mW
Off-Mode Power Consumption (Energy Star)
- 300 mW
Maximum Power Consumption (Energy Star)
- 30 W
Operating Power Consumption (Energy Star)
- 18 W
