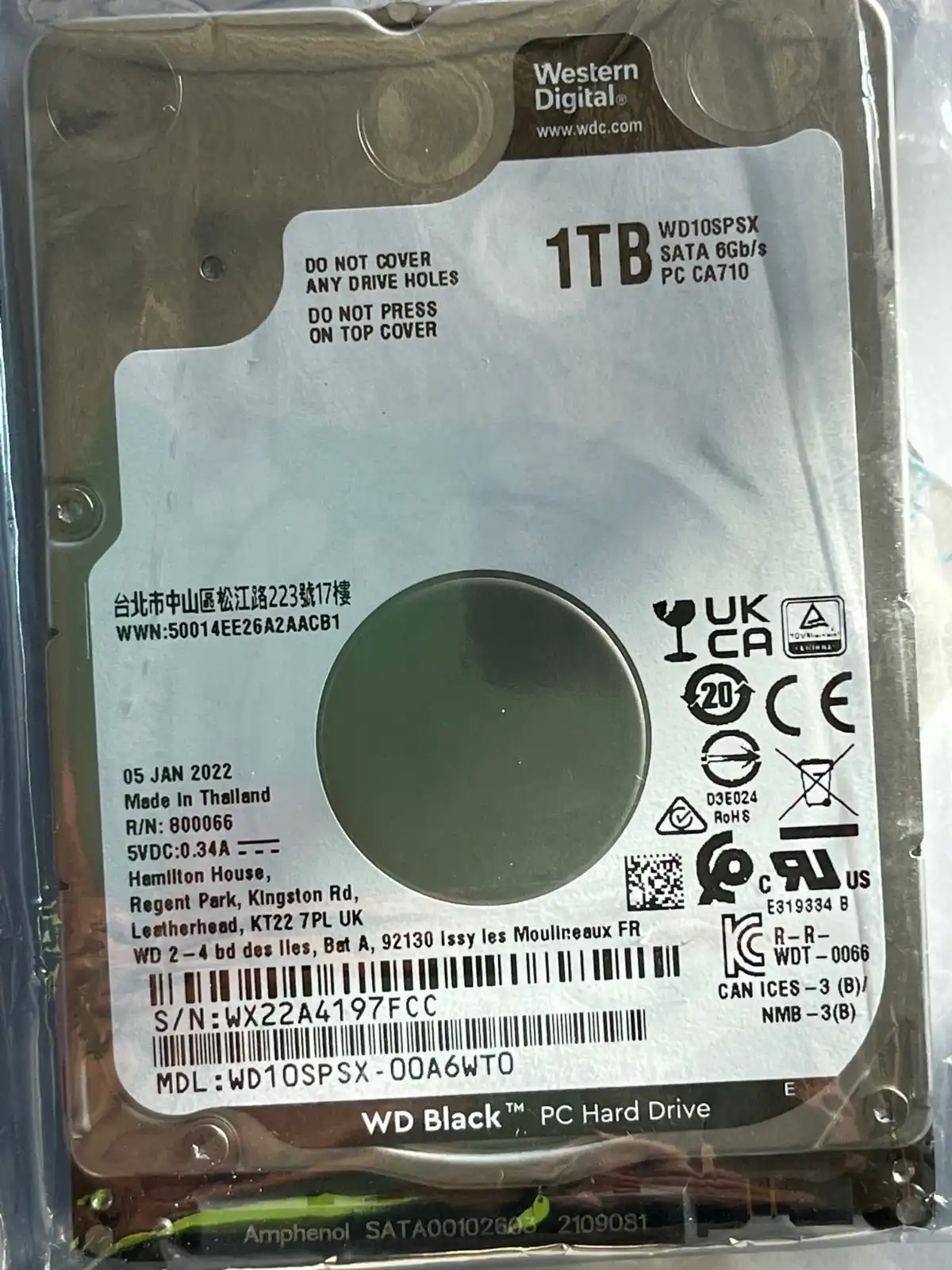

1TB Western Digital WD10SPSX SATA 6Gb/s 7mm 7200rpm 2.5" Hard Drive
Specifications
Product Description
| SPECIFICATIONS | |
|---|---|
| Part Number | WD10SPSX |
| Capacity | 1TB |
| Interface | SATA 6 Gb/s |
| Formatted Capacity | 1,000,204 MB |
| User Sectors per Drive | 1,953,525,168 |
| Advanced Format (AF) | Yes |
| Form Factor | 2.5-inch |
| RoHS Compliant | Yes |
| PERFORMANCE | |
| Data Transfer Rates Interface Speed Internal Transfer Rate (max) |
6 Gb/s 144 MB/s |
| Cache (MB) | 64 |
| Average Latency (ms) | 5.5 |
| Rotational Speed | 7200 |
| Average Drive Ready Time (sec) | 3.0 |
| RELIABILITY/DATA INTEGRITY | |
| Load/Unload Cycles | 600,000 |
| Non-Recoverable Read Errors per Bits Read | <1 in 10e14 |
| Operating Voltage | +3.3V, +12V |
| POWER MANAGEMENT | |
| 5VDC ±10% (A, peak) | 1.00 |
| Average Power Requirements (W) Read/Write Idle Standby/Sleep |
1.4 0.59 0.18 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temberature (°C) Operating Non-Operating |
0 to 60 -40 to 65 |
| Shock (Gs) Operating (2 ms, read) Non-Operating |
350 1000 (2 ms) |
| Acoustics (dBA) Idle Seek (average) |
24 25 |
| PHYSICAL DIMENSIONS | |
| Height (mm) | 9.5 |
| Length (mm) | 100 |
| Width (mm) | 70 |
| Weight (g, ± 10%) | 90 |
