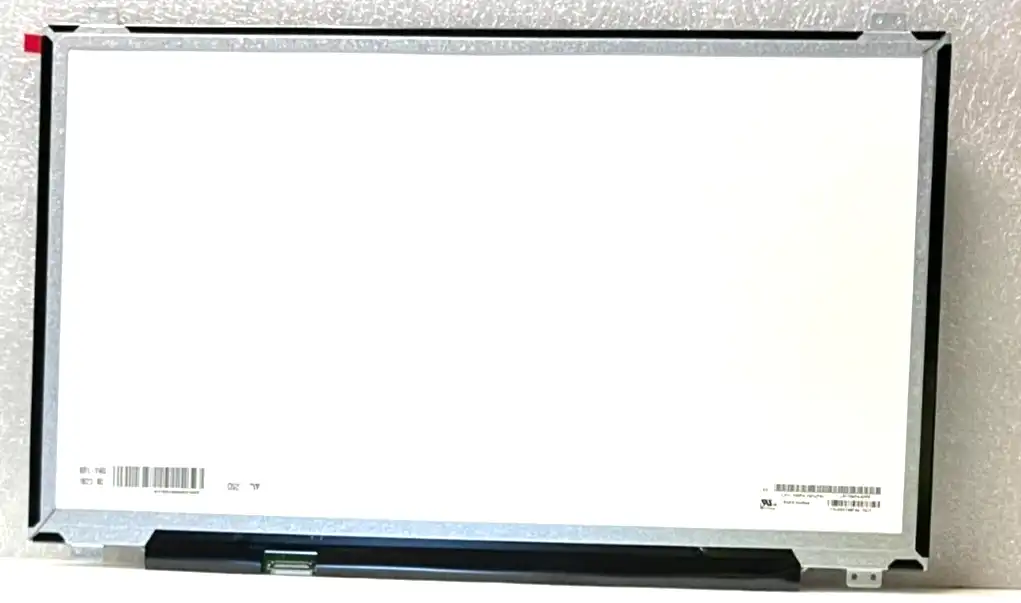

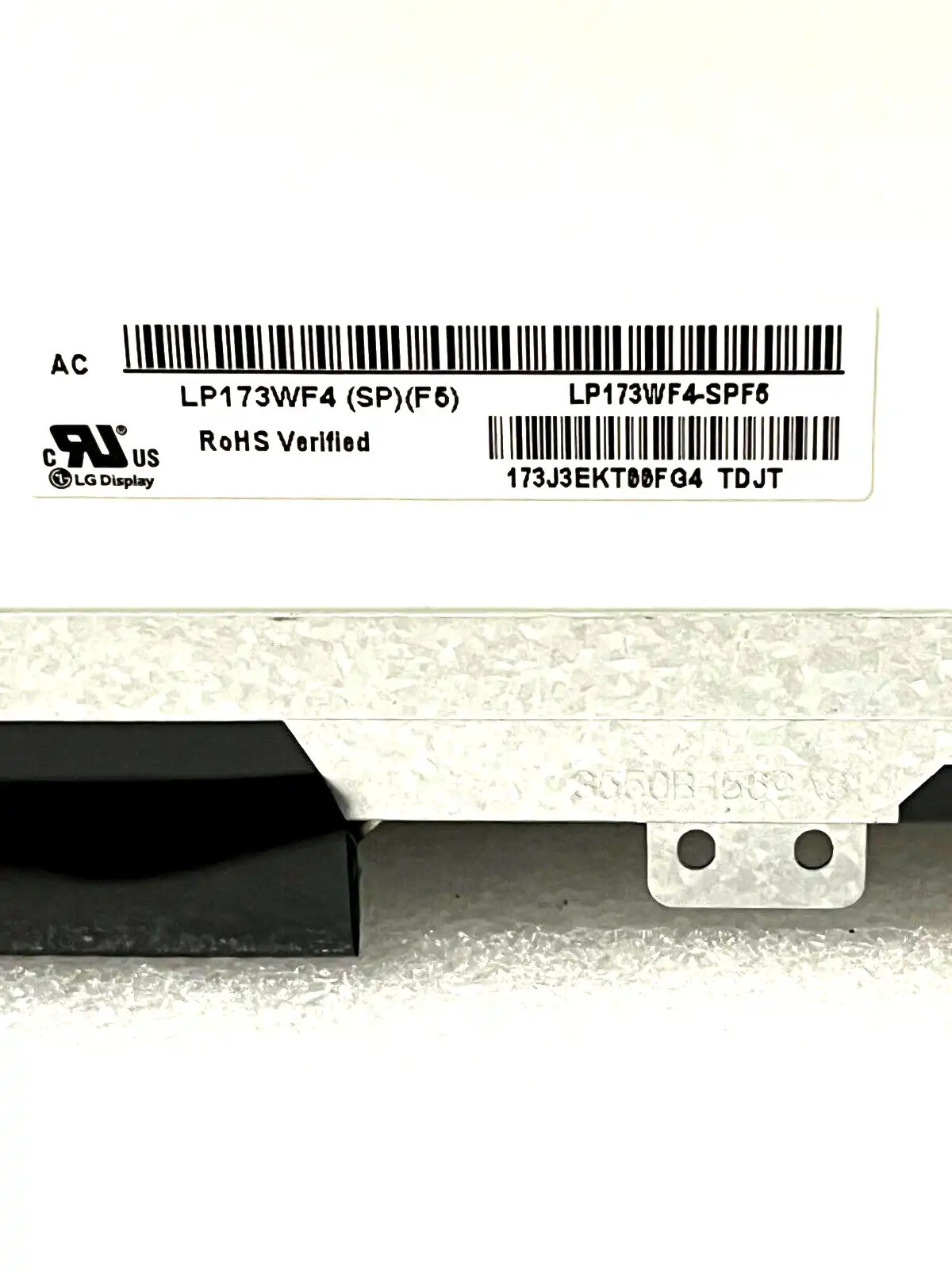

17.3" LED LCD Screen LP173WF4-SPF5 Full HD IPS 1080p 30-pin LP173WF4(SP)(F5)
- Brand
- LG Display
- Model P/N
- LP173WF4-SPF5
- Diagonal Size
- 17.3"
- Panel Type
- a-Si TFT-LCD, LCM
- Resolution
- 1920(RGB)×1080, FHD 127PPI
- Pixel Format
- RGB Vertical Stripe
- Active Area
- 381.888(W)×214.812(H) mm
- Bezel Opening
- 385.95(W)×218.9(H) mm
- Outline (mm)
- 398.1×250.51×4 (H×V×D)
- Treatment
- Antiglare
- Luminance
- 300 cd/m² (Typ.)
- Contrast Ratio
- 700 : 1 (Typ.) (TM)
- Viewing Angle
- 80/80/80/80 (Min.)(CR≥10)
- Response
- 25 (Typ.)(Tr+Td) ms
- Good View at
- Symmetry
- Work Mode
- IPS, Normally Black, Transmissive
- Color Depth
- 262K 71% NTSC
- Backlight
- WLED , 15K hours , With LED Driver
- Outline Shape
- Flat (PCBA Flat, T3.4~4.0mm)
- Refresh Rate
- 60Hz
- Touchscreen
- Without
- Signal Type

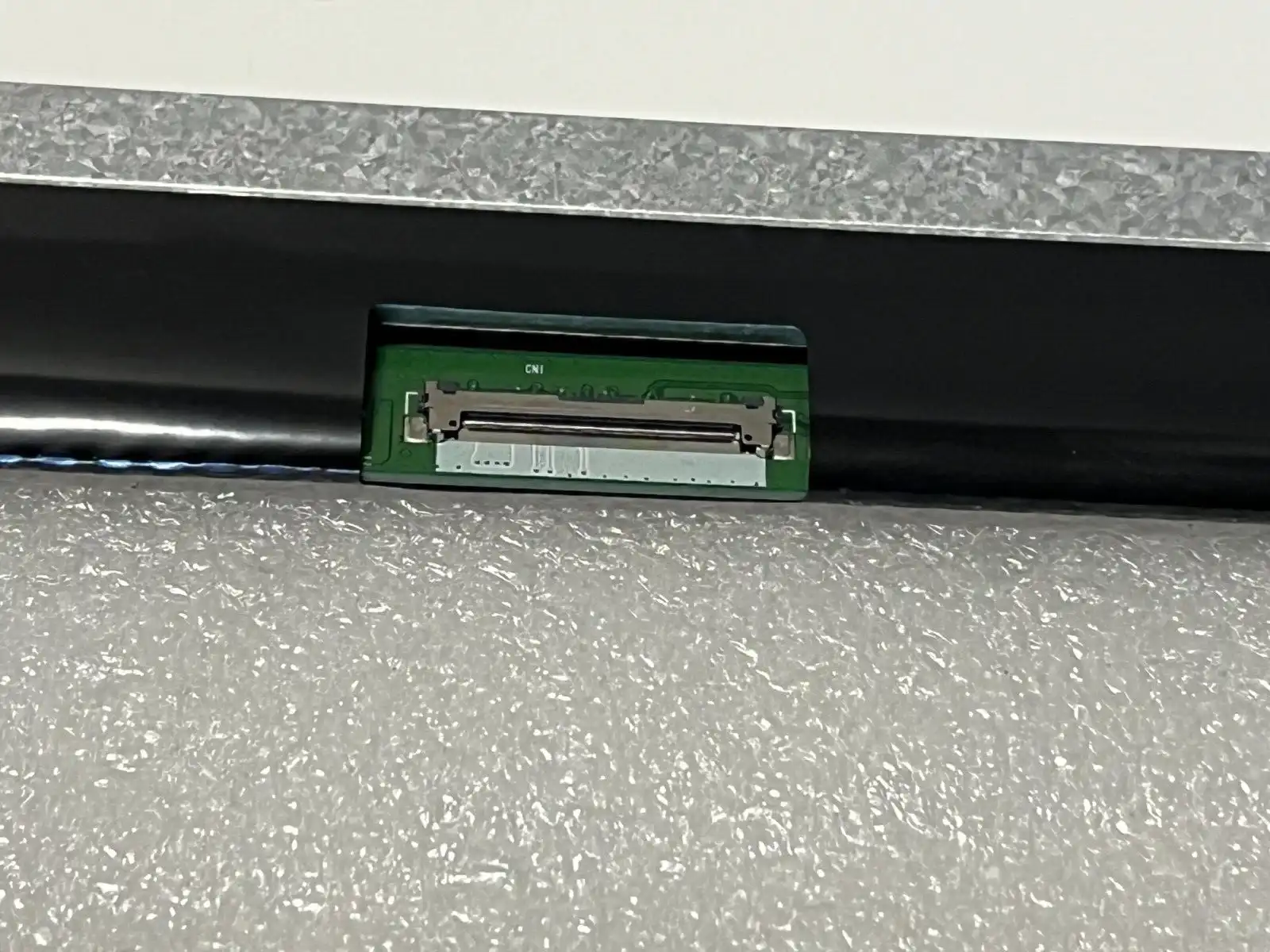

- eDP (2 Lanes) , HBR1 (2.7G/lane) , Connector 30 pins
- Voltage Supply
- 3.3V (Typ.)
- Max. Ratings
- Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
|
