| Outline Size |
389.89(W)×238.31(H) ×3.5(D) mm |
Surface |
Antiglare, Hard coating (3H) |
| Brightness |
300 cd/m² (Typ.) |
Contrast Ratio |
1000:1 (Typ.) (TM) |
| Viewing Angle |
89/89/89/89 (Typ.)(CR≥10) |
Display Mode |
AAS, Normally Black, Transmissive |
| Best View on |
Symmetry |
Response Time |
4/5 (Typ.)(Tr/Td), 7 (Typ.)(G to G), 3 (Typ.)(G to G, OD) |
| Display Colors |
16.7M 100% sRGB |
Lamp Type |
WLED , 15K hours , With LED Driver |
| Frequency |
144Hz |
Touch Screen |
Without |
| Shape Style |
Flat (PCBA Flat, T3.4~4.0mm) |
Application |
| Signal Interface |

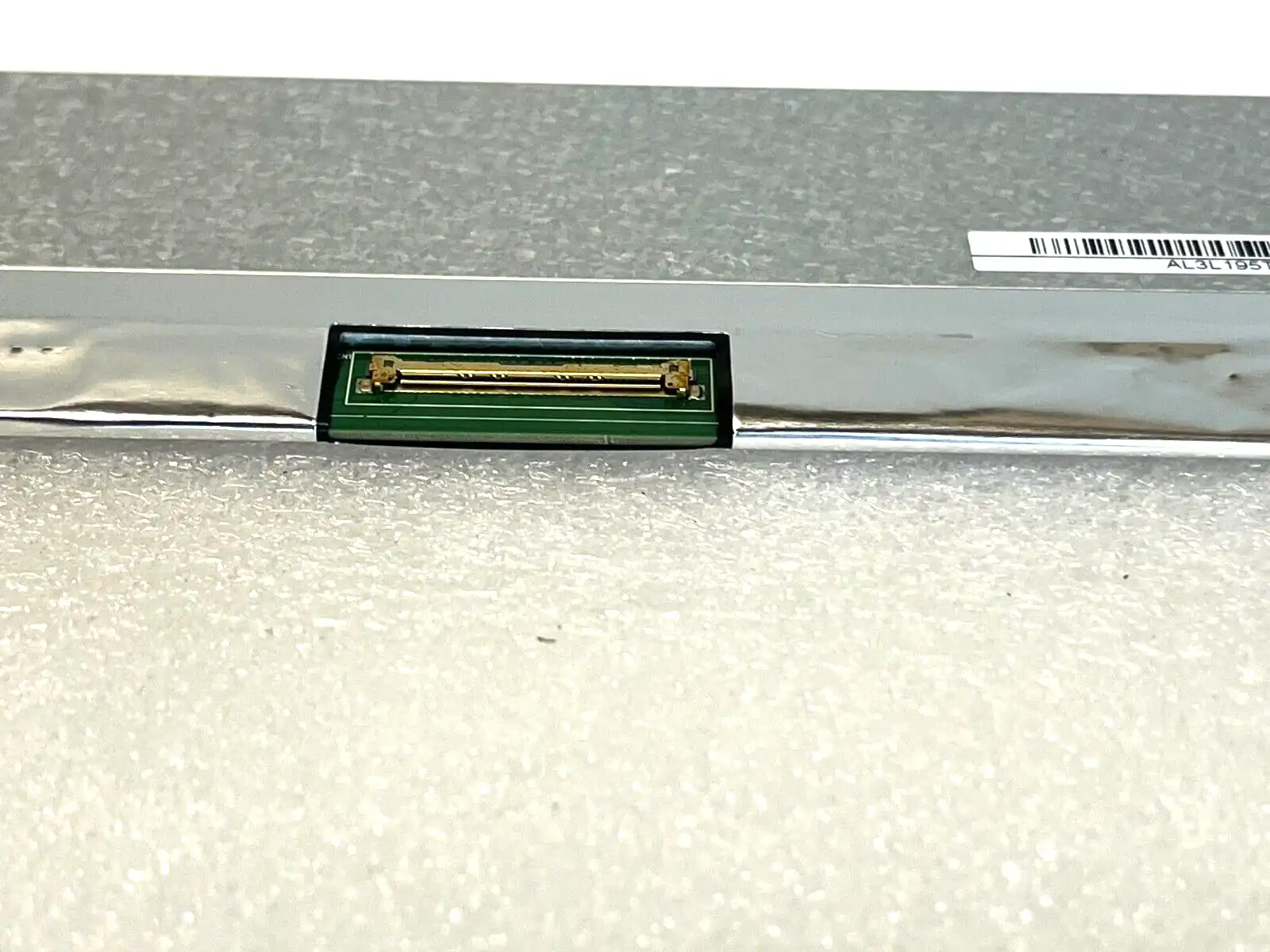

eDP (4 Lanes) , eDP1.3 , 40 pins Connector |
| Input Voltage |
3.4V (Typ.) |
| Environment |
Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
