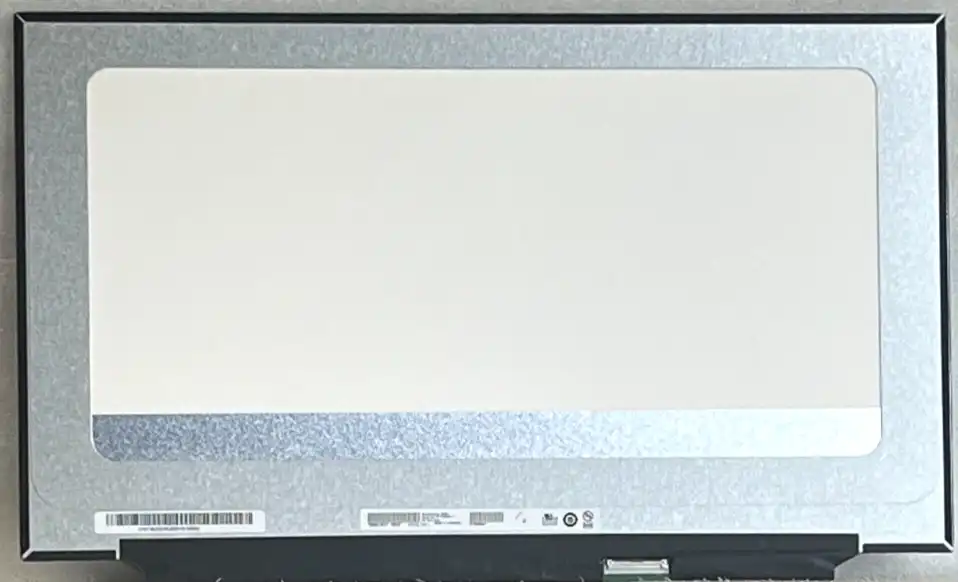

17.3" AU Optronics LED LCD Screen B173HAN04.0 IPS Full HD 1080p 40-pin matte
Specifications
Specifications
| Connector |
40-pin |
| Display Technology |
LED LCD |
| Custom Bundle |
No |
| Screen Finish |
Matt |
| Screen Size |
17.3 in |
| Brand |
AU Optronics |
| Type |
TFT-LCD |
| Maximum Resolution |
1920 x 1080 |
| Aspect Ratio |
16:9 |
| Compatible Brand |
Universal |
| Modified Item |
No |
| MPN |
B173HAN04.0 |
| Non-Domestic Product |
No |
Product Description
-
- Brand
- AUO
- Model P/N
- B173HAN04.0
- Diagonal Size
- 17.3"
- Panel Type
- a-Si TFT-LCD, LCM
- Resolution
- 1920(RGB)×1080, FHD 127PPI
- Pixel Format
- RGB Vertical Stripe
- Active Area
- 381.888(W)×214.812(H) mm
- Bezel Opening
- -
- Outline Dim.
389.89(W)×238.31(H)×3.5(D) mm
- Treatment
Antiglare, Hard coating (3H)
- Luminance
300 cd/m² (Typ.)
- Contrast Ratio
800:1 (Typ.) (TM)
- View Direction
Symmetry
- Response Time
9 (Typ.)(Tr+Td), 7 (Typ.)(G to G)
- Viewing Angle
85/85/85/85 (Typ.)(CR≥10)
- Operating Mode
AHVA, Normally Black, Transmissive
- Support Color
16.7M 72% NTSC
- Light Source
WLED , 15K hours , With LED Driver
- Form Style
Flat (PCBA Flat, T3.4~4.0mm)
- Frame Rate
144Hz
- Touch Panel
Without
- Interface Type
- eDP (2 Lanes) , eDP1.4 , HBR2 (5.4G/lane) , 40 pins Connector
- Power Supply
- 3.3V (Typ.)
- Environment
- Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
