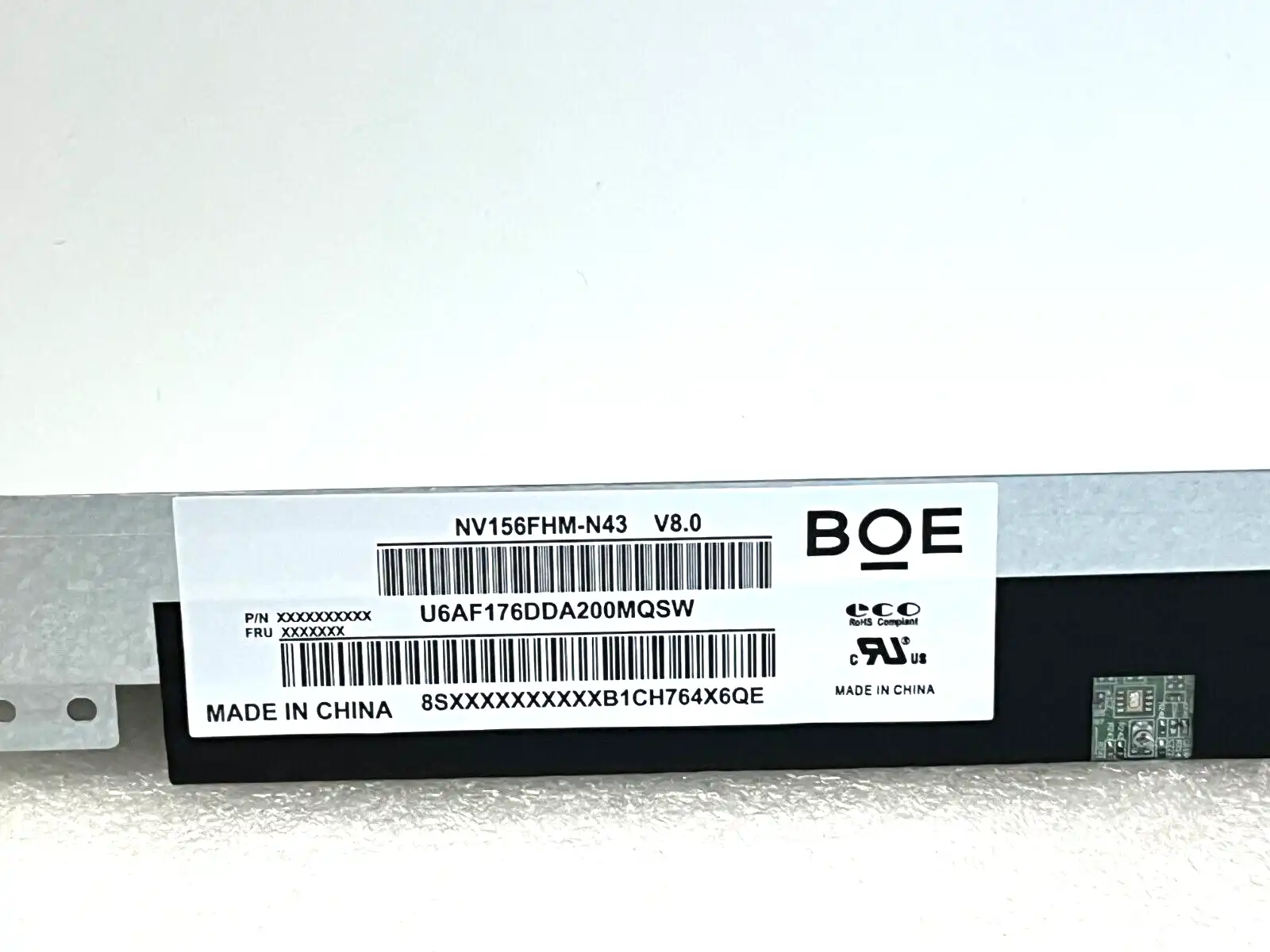

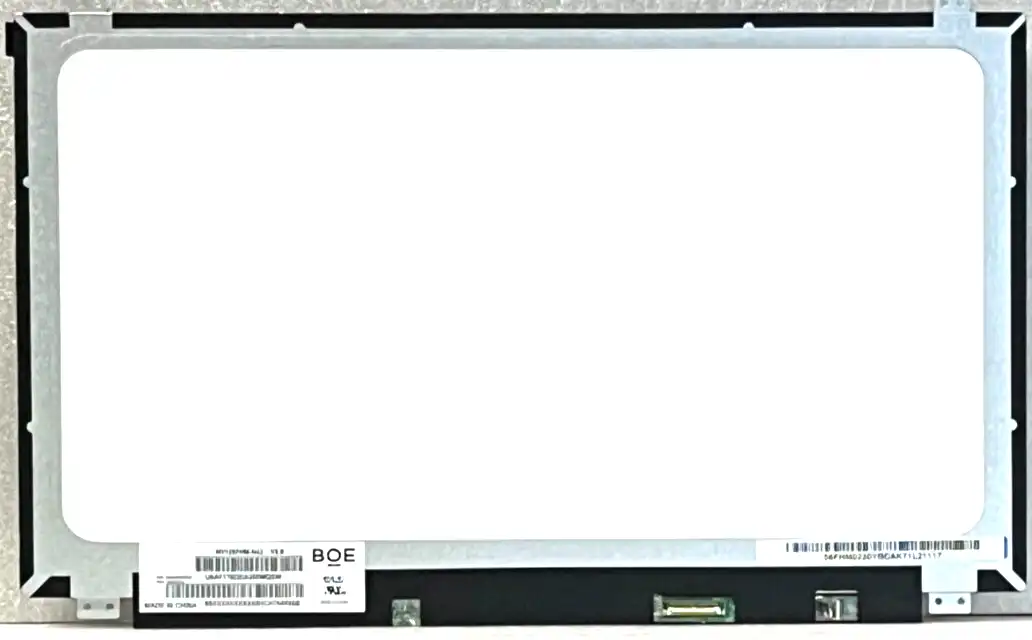

15.6" Original BOE LED LCD Screen NV156FHM-N43 Full HD 1080p 30-pin matte
Specifications
Specifications
| Connector | 30-pin |
| Display Technology | LED LCD |
| Custom Bundle | No |
| Screen Finish | Matt |
| Screen Size | 15.6 in |
| Brand | BOE |
| Maximum Resolution | 1920 x 1080 |
| Country/Region of Manufacture | China |
| Compatible Brand | Universal |
| Non-Domestic Product | No |
| Modified Item | No |
| Type | TFT-LCD |
| MPN | NV156FHM-N43 |
| Aspect Ratio | 16:9 |
Product Description
-
- Brand
- BOE
- Model P/N
- NV156FHM-N43 6 Compatible
- Diagonal Size
- 15.6"
- Panel Type
- a-Si TFT-LCD, LCM
- Resolution
- 1920(RGB)×1080, FHD 141PPI
- Pixel Format
- RGB Vertical Stripe
- Active Area
- 344.16(W)×193.59(H) mm
- Bezel Opening
- -
- Outline Size
- 359.5(W)×223.8(H) ×3.2(D) mm
- Surface
- Antiglare
- Brightness
- 300 cd/m² (Typ.)
- Contrast Ratio
- 800:1 (Typ.) (TM)
- Viewing Angle
- 85/85/85/85 (Typ.)(CR≥10)
- Display Mode
- ADS, Normally Black, Transmissive
- Best View on
- Symmetry
- Response Time
- 30 (Typ.)(Tr+Td)
- Display Colors
- 262K 72% NTSC
- Lamp Type
- 9S6P WLED , 15K hours , With LED Driver
- Frequency
- 60Hz
- Touch Screen
- Without
- Shape Style
- Slim (PCBA Flat, T≤3.2mm)
- Application
- Signal Interface

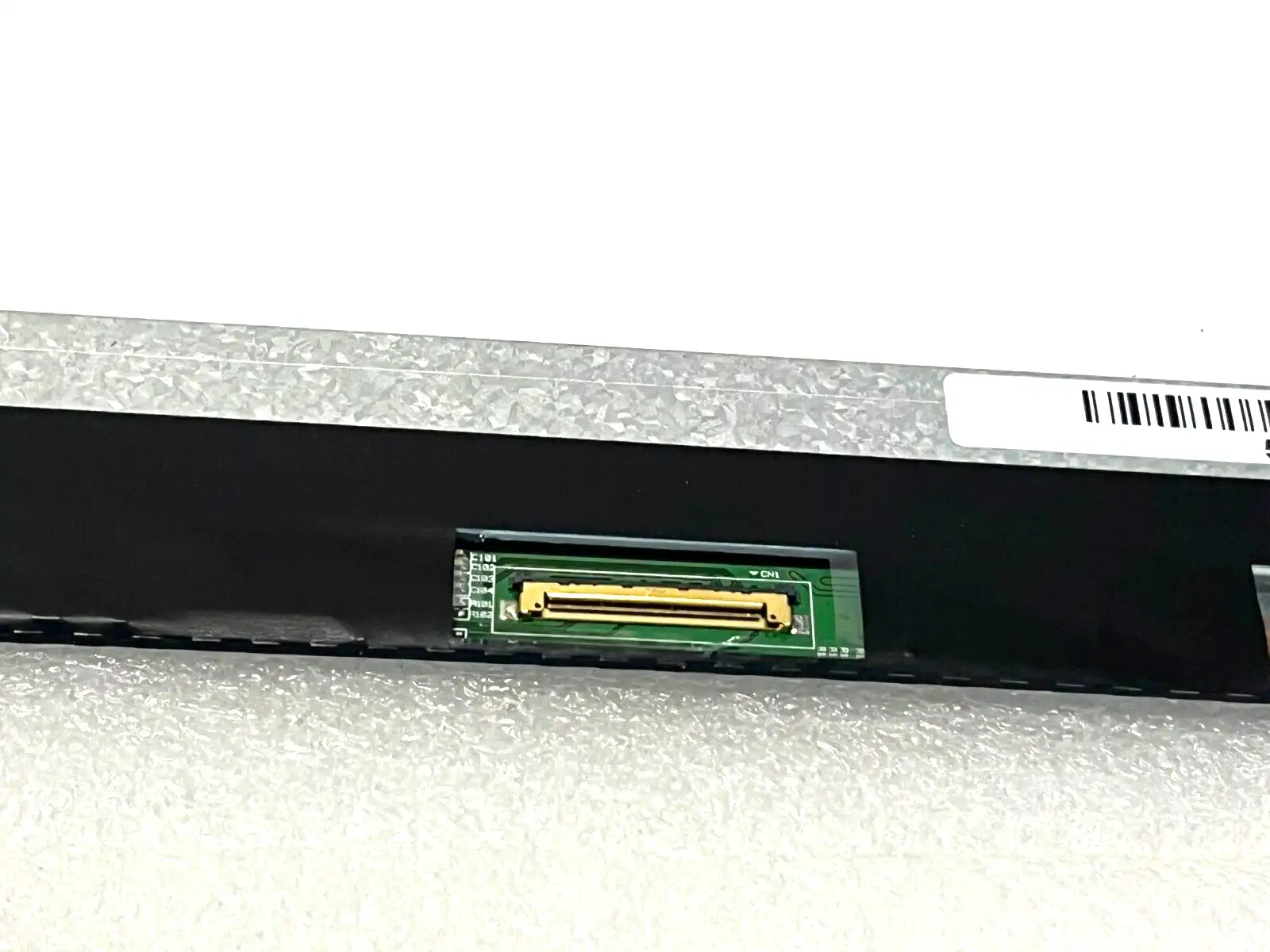

- eDP (2 Lanes) , eDP1.3 , HBR1 (2.7G/lane) , 30 pins Connector
- Input Voltage
- 3.3V (Typ.)
- Environment
- Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
