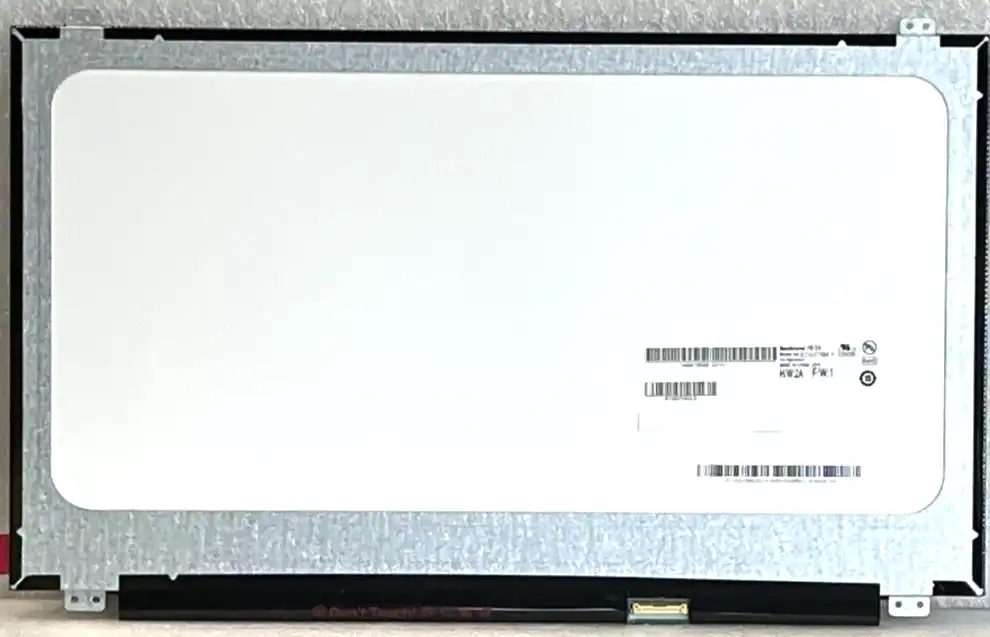

15.6" AU Optronics LED LCD Screen B156XTN04.6 Full HD 1080p 30-pin matte
Specifications
Specifications
| Connector | 30-pin |
| Display Technology | LED LCD |
| Custom Bundle | No |
| Screen Finish | Matt |
| Screen Size | 15.6 in |
| Type | TFT-LCD |
| Aspect Ratio | 16:9 |
| Country/Region of Manufacture | China |
| Non-Domestic Product | No |
| Modified Item | No |
| Compatible Brand | Universal |
| Brand | AU Optronics |

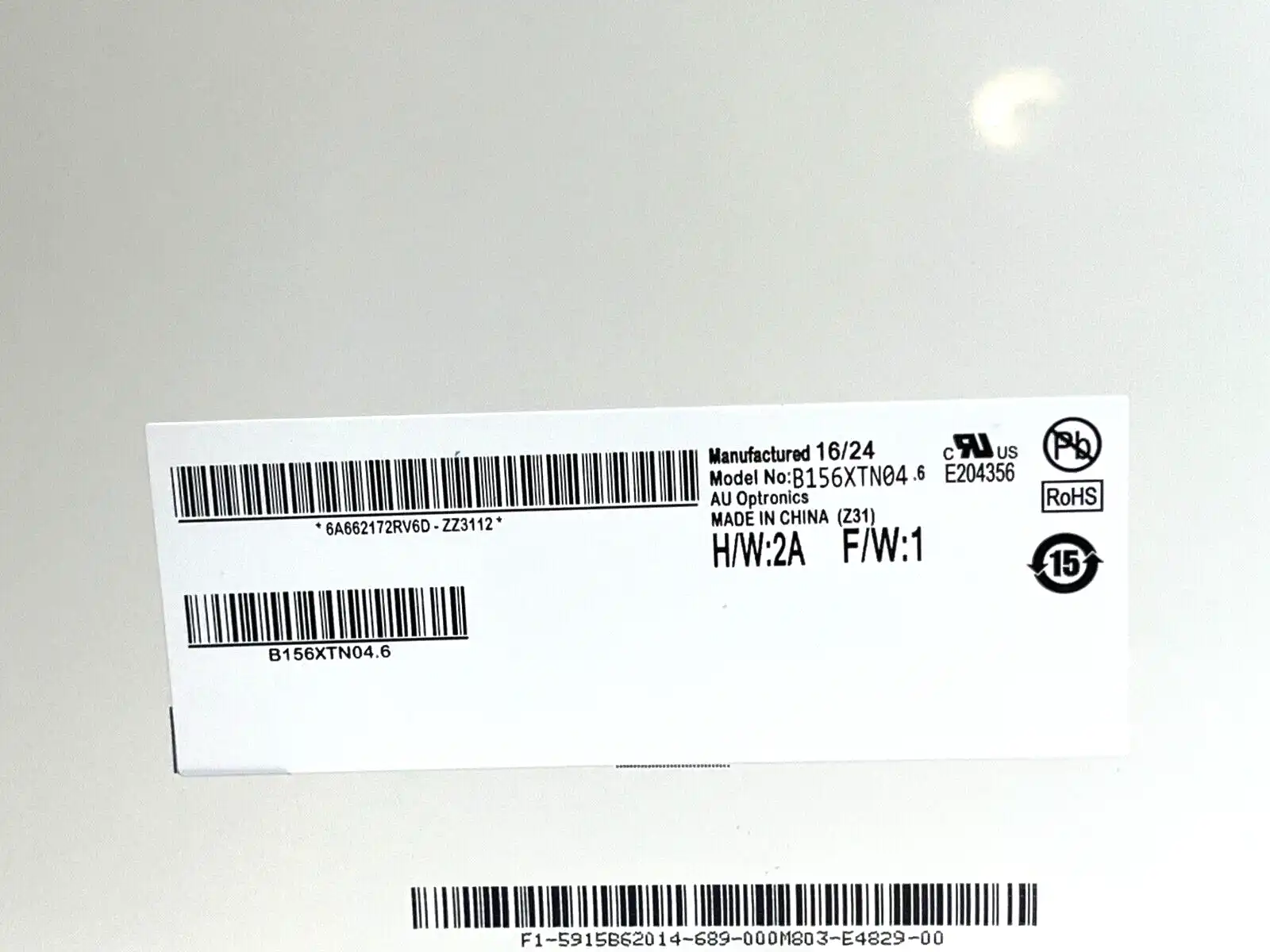

| MPN | B156XTN04.6 |
| Maximum Resolution | 1920 x 1080 |
Product Description
Brand
- AUO
- Model P/N
- B156XTN04.6 <align="absmiddle" width="12" height="12" title="Compatible Model"> 23 Compatible
- Diagonal Size
- 15.6"
- Panel Type
- a-Si TFT-LCD, LCM
- Resolution
- 1366(RGB)×768, WXGA 100PPI
- Pixel Format
- RGB Vertical Stripe
- Active Area
- 344.232(W)×193.536(H) mm
- Bezel Opening
- 346.2(W)×195.5(H) mm
| Outline (mm) | 359.5(W)×223.8(H)×3.8(D) | Treatment | Antiglare, Hard coating (3H) |
|---|---|---|---|
| Luminance | 220 (Typ.)(cd/m²) | Contrast Ratio | 400 : 1 (Typ.) (TM) |
| Viewing Angle | 45/45/15/35 (Typ.)(CR≥10) | Work Mode | TN, Normally White, Transmissive |
| Good View at | 6 o'clock | Response | 8 (Typ.)(Tr+Td) ms |
| Color Depth | 262K 45% NTSC | Backlight | WLED, 15K hours, With LED Driver |
| Outline Shape | Flat (PCBA Flat, T3.4~4.0mm) | Used for | |
| Refresh Rate | 60Hz | Touchscreen | Without |

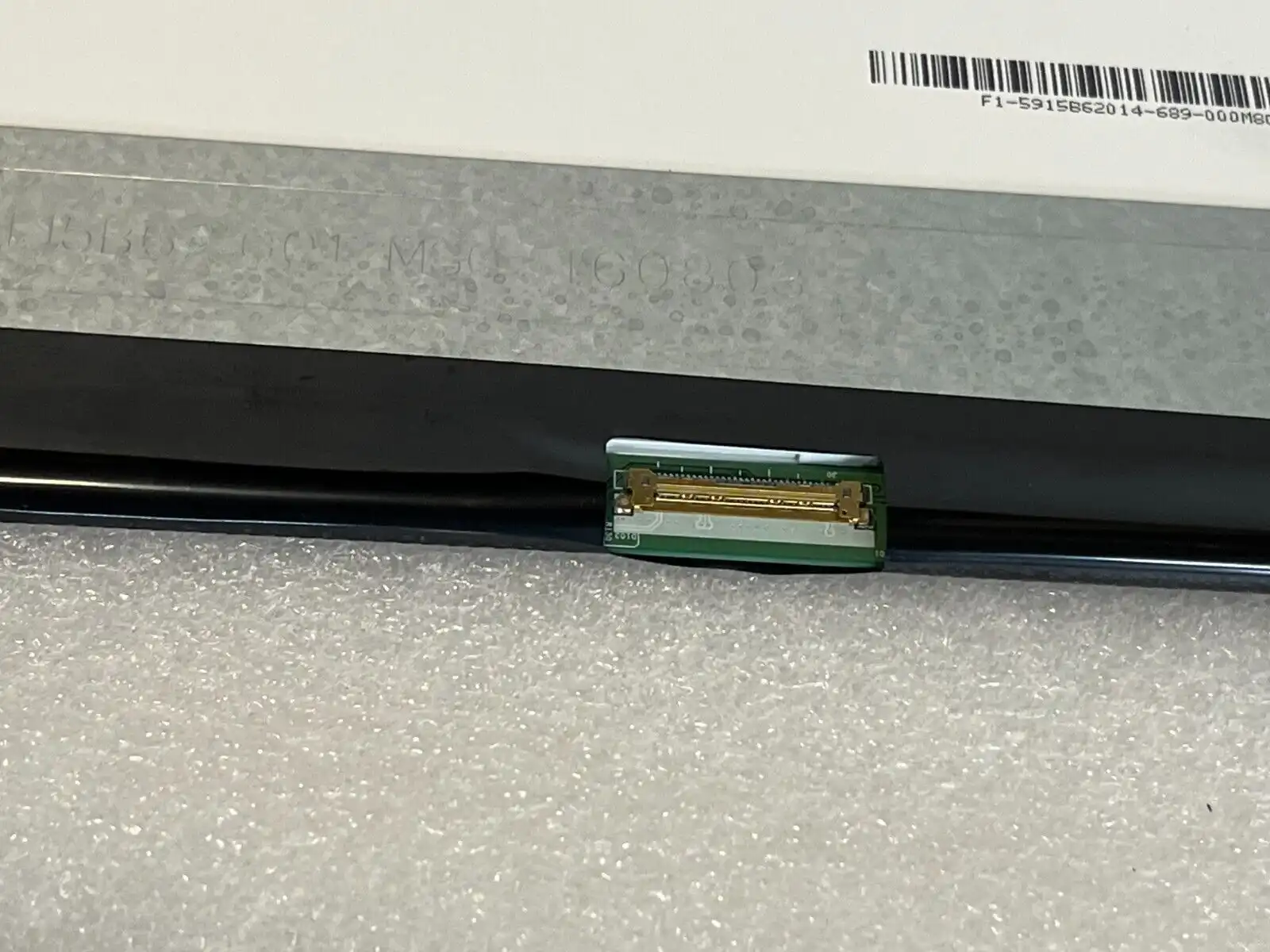

| Signal Type | eDP (1 Lane), eDP1.2, 30 pins Connector | ||
| Voltage Supply | 3.3V (Typ.) | ||
| Max. Ratings | Storage Temp.: -20 ~ 60 °C, Operating Temp.: 0 ~ 50 °C | ||
>
