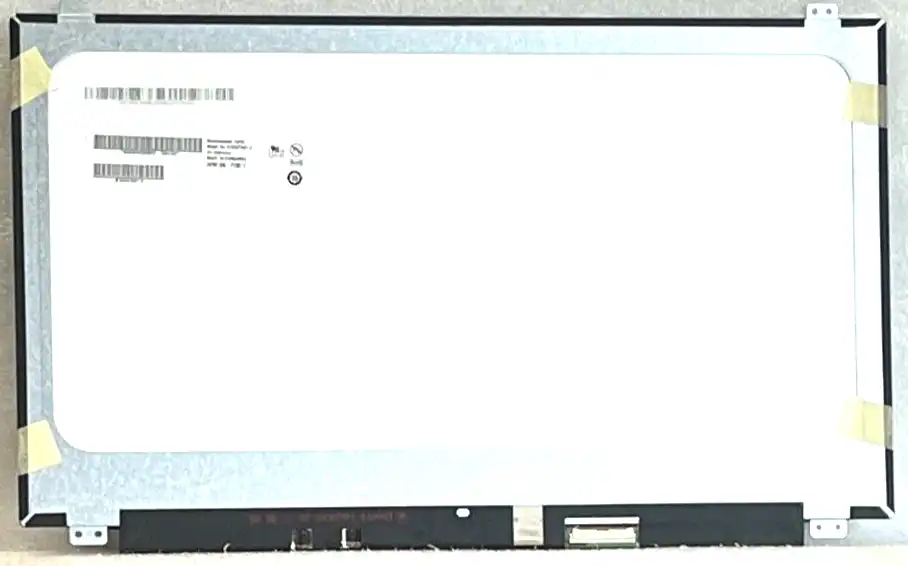

15.6" AU Optronics LED LCD Screen B156XTK01.0 40-pin matte
Specifications
Specifications
| Connector | 40-pin |
| Display Technology | LED LCD |
| Custom Bundle | No |
| Screen Finish | Matt |
| Screen Size | 15.6 in |

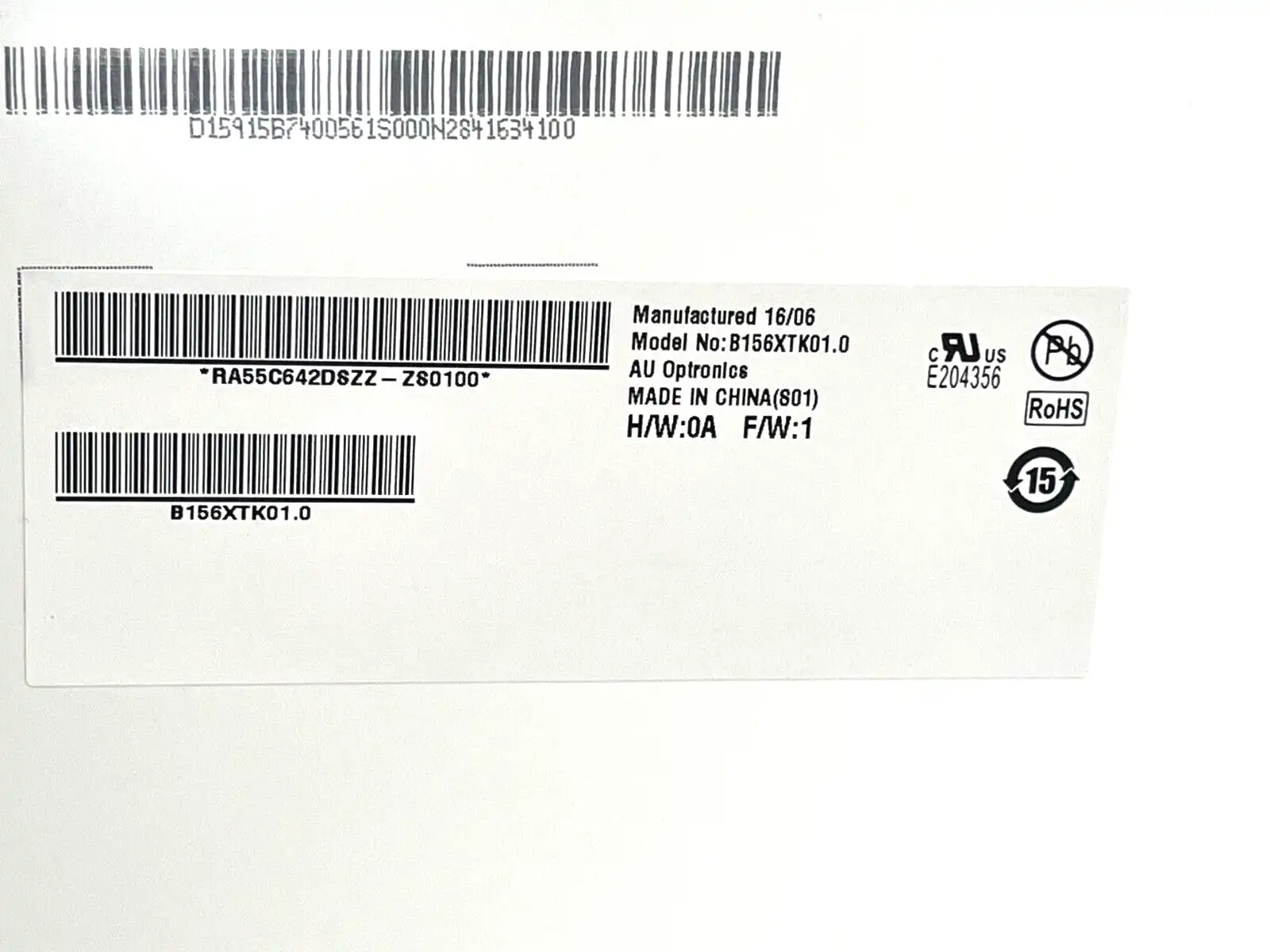

| MPN | B156XTK01.0 |
| Brand | AU Optronics |
| Maximum Resolution | 1366 x 768 |
| Aspect Ratio | 16:9 |
| Country/Region of Manufacture | China |
| Compatible Brand | Universal |
| Non-Domestic Product | No |
| Modified Item | No |
| Type | TFT-LCD |
Product Description
Brand AUO
- Model P/N B156XTK01.0
- Diagonal Size 15.6"
- Panel Type a-Si TFT-LCD, LCM
- Resolution 1366(RGB)×768, WXGA 100PPI
- Pixel Format RGB Vertical Stripe
- Active Area 344.232(W)×193.536(H) mm
- Bezel Opening
| Outline Size | 359.5(W)×223.8(H) ×3.4(D) mm | Surface | Hard coating (3H) |
|---|---|---|---|
| Brightness | 200 cd/m² (Typ.) | Contrast Ratio | 500:1 (Typ.) (TM) |
| Viewing Angle | 45/45/15/35 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock | Response Time | 8 (Typ.)(Tr+Td) |
| Display Colors | 262K 45% NTSC | Lamp Type | WLED , 15K hours , With LED Driver |
| Frequency | 60Hz | Touch Screen | On-Cell Touch, I²C/USB |
| Shape Style | Slim (PCBA Flat, T≤3.2mm) | Application | |

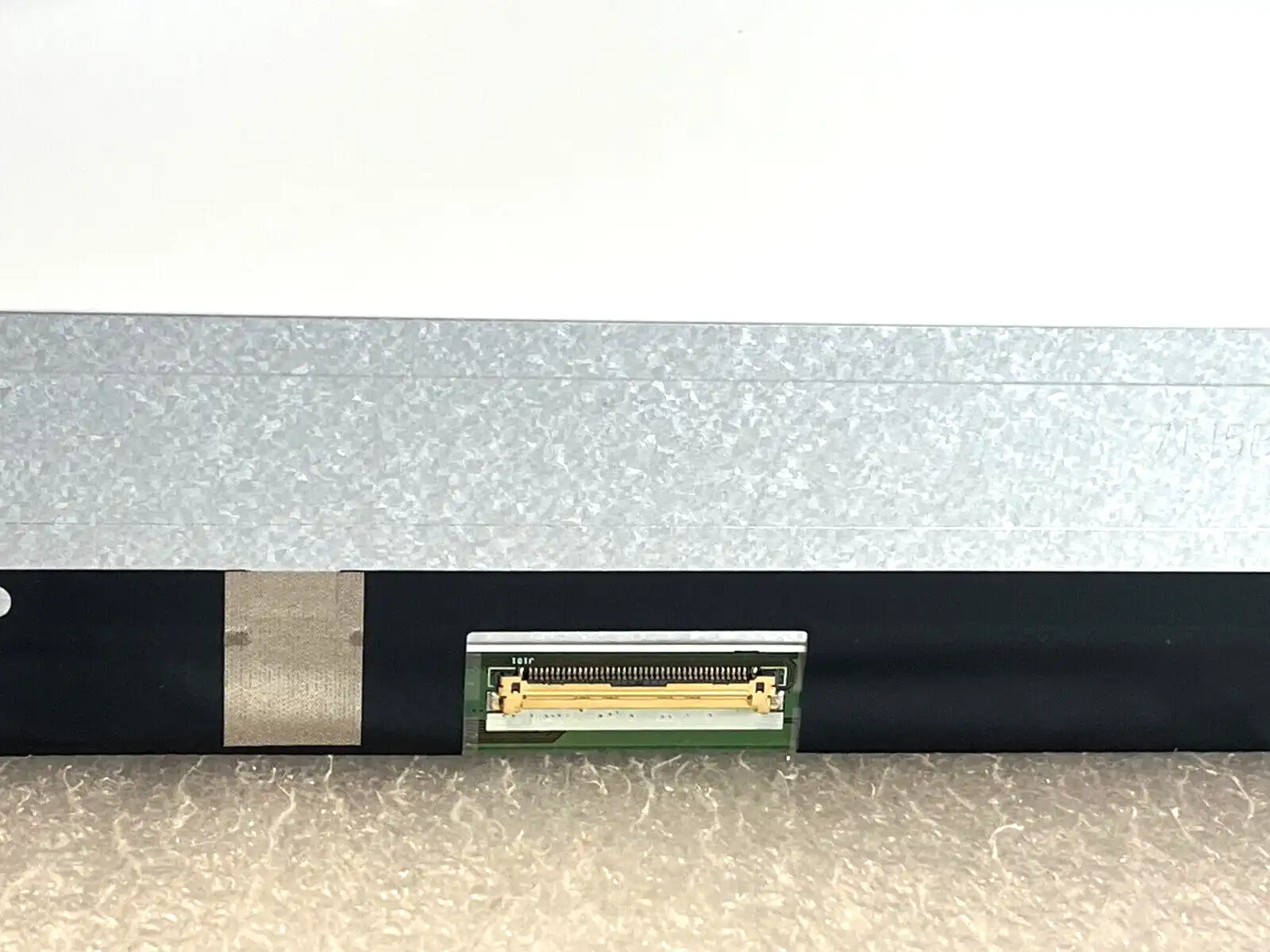

| Signal Interface | eDP (1 Lane) , 40 pins Connector | ||
| Input Voltage | 3.3V (Typ.) | ||
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C | ||
